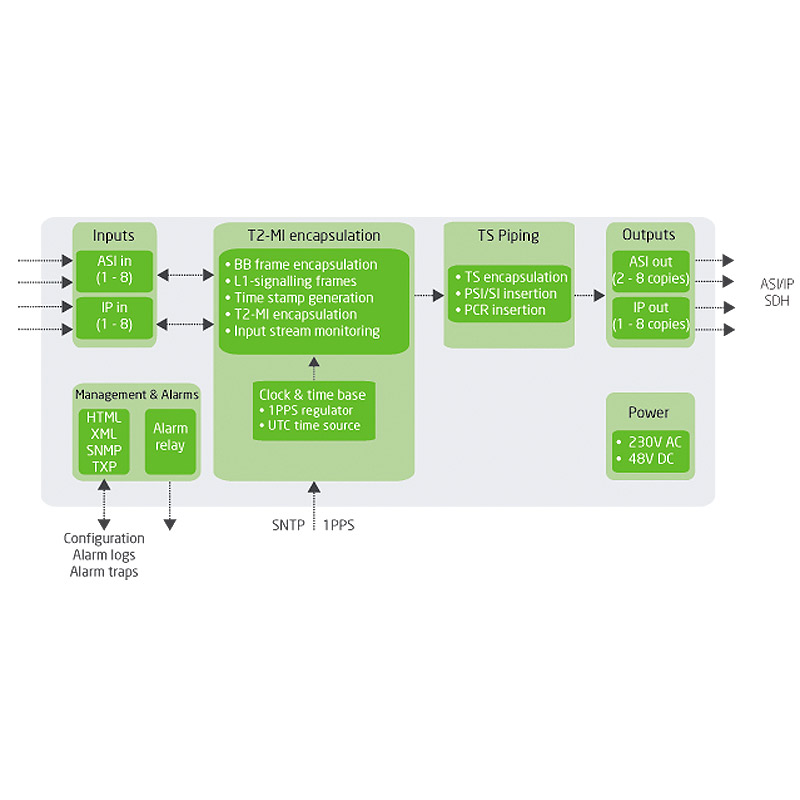

The CP560 DVB-T2 Gateway provides a central point of control for DVB-T2 networks, enabling the operator to take advantage of the more efficient spectrum utilization promised by the next generation terrestrial broadcasting technology. The CP560 utilizes the advanced processing capabilities of the cProcessor family to adapt the transport stream into the DVB-T2 Modulator Interface format.

The CP560 also enables the DVB-T2 Modulator Interface to control the modulator parameters and provides the accurate timing and rate control required for SFN (single frequency network) operation. The CP560 is part of Nevion’s cProcessor product family, a line of compact and powerful and cost-effective, products designed for advanced processing and handling of MPEG transport streams. The CP560 provides flexible interfacing with ASI or IP inputs, and DVB-T2 MI outputs over ASI and IP.

Benefits

  • Efficiency increase of up to 50% compared to DVB-T
  • Central point of control for DVB-T2 networks
  • Higher signal robustness compared to DVB-T
  • Better frequency usage with SFN

Applications

  • Gateway between DVB-T2 head-ends and transmission network
  • Centralized control and signalling of DVB-T2 modulators
  • Synchronization for DVB-T2 SFN networks
  • DVB-T2 preprocessing
  • DVB-T2 Lite networks

Key Features

  • DVB-T2 MI interface to the DVB-T2 and DVB-T2Lite modulators
  • Single and multiple PLP operation
  • Seamless SFN/MFN T2 switching between units in 1+1 configuration

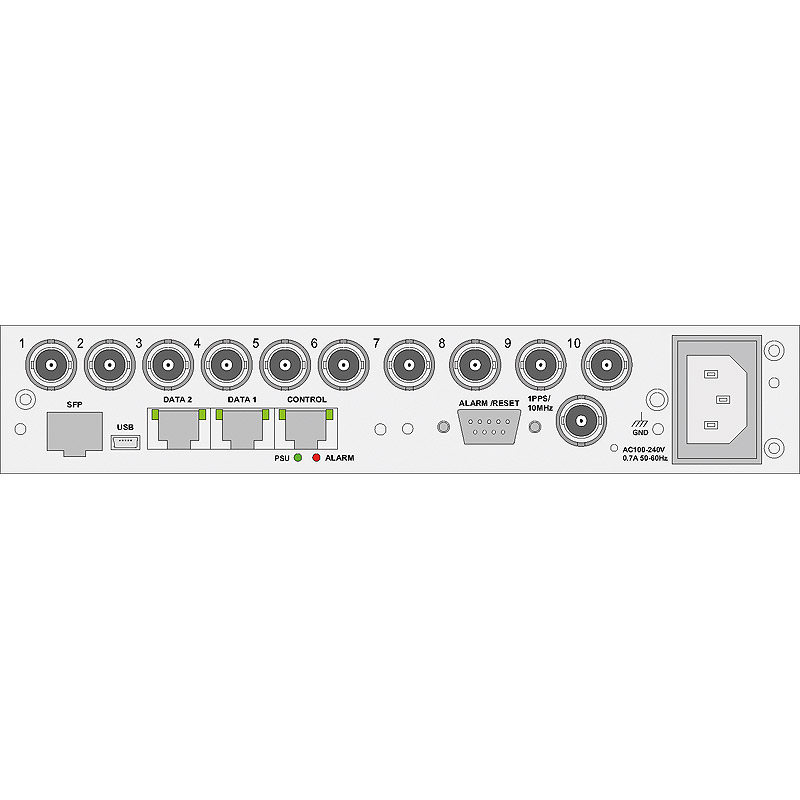

  • ASI and IP input/output interfaces with redundancy
  • User-friendly configuration and control
  • Compact, cost-effective solutions with 2 units in 1RU

  nevion_cp560_data_sheet_r1513

Nevion Fastbrowser

Adobe air applicaton to browse gui of cPorcessor, nSure and Video Gateway products. The fastbrowser will cache the gui files so that download of the gui files is only needed once. This will help out browsing units on slow IP links. If you have the Fastbrowser already installed you might have to de-install the older one version before installing the new version as it is not signed with a "trusted" certificate.

  nfb_2_0_1 ()

Nevion Detect

Software to detect and change IP address on units in the cProcessor, nSure and Video Gateway family.

  Nevion Detect 1.4.0 ()

MIBs

These mibs apply for the cProcessor, nSure and Video Gateway products, except the new 4000 platform.

  mibs ()

CP560 2.6.0

The CP560 software release 2.6.0 is a patch release, see release notes for full details.

  CP560_release_notes_2_6_0 (11/06/2013)

  CP560_users_manual_rev_2_2_0

  TXP HTTP/XML protocol
