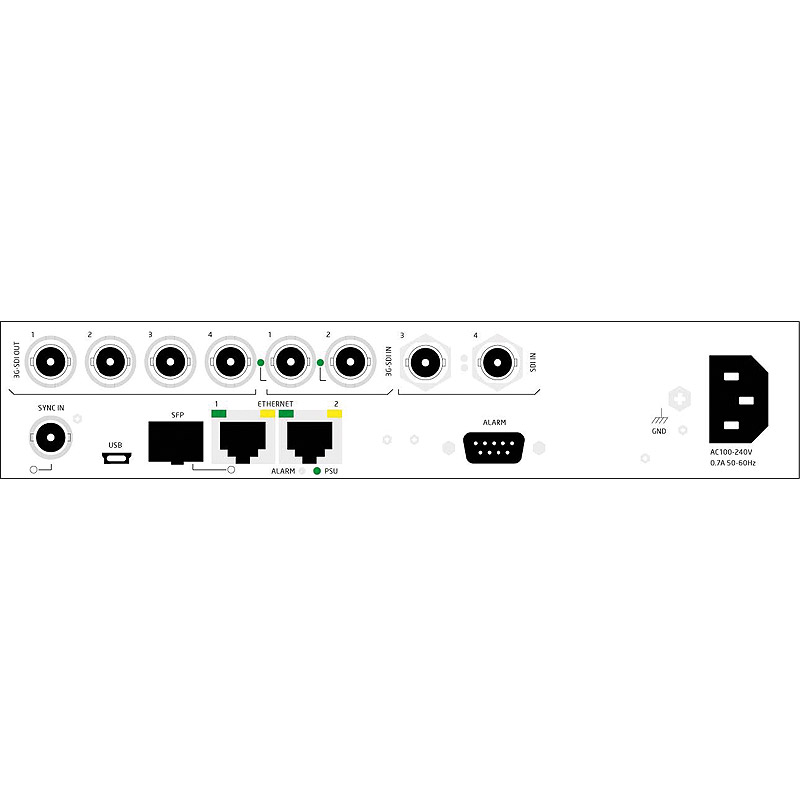

TVG450 JPEG 2000 Gateway

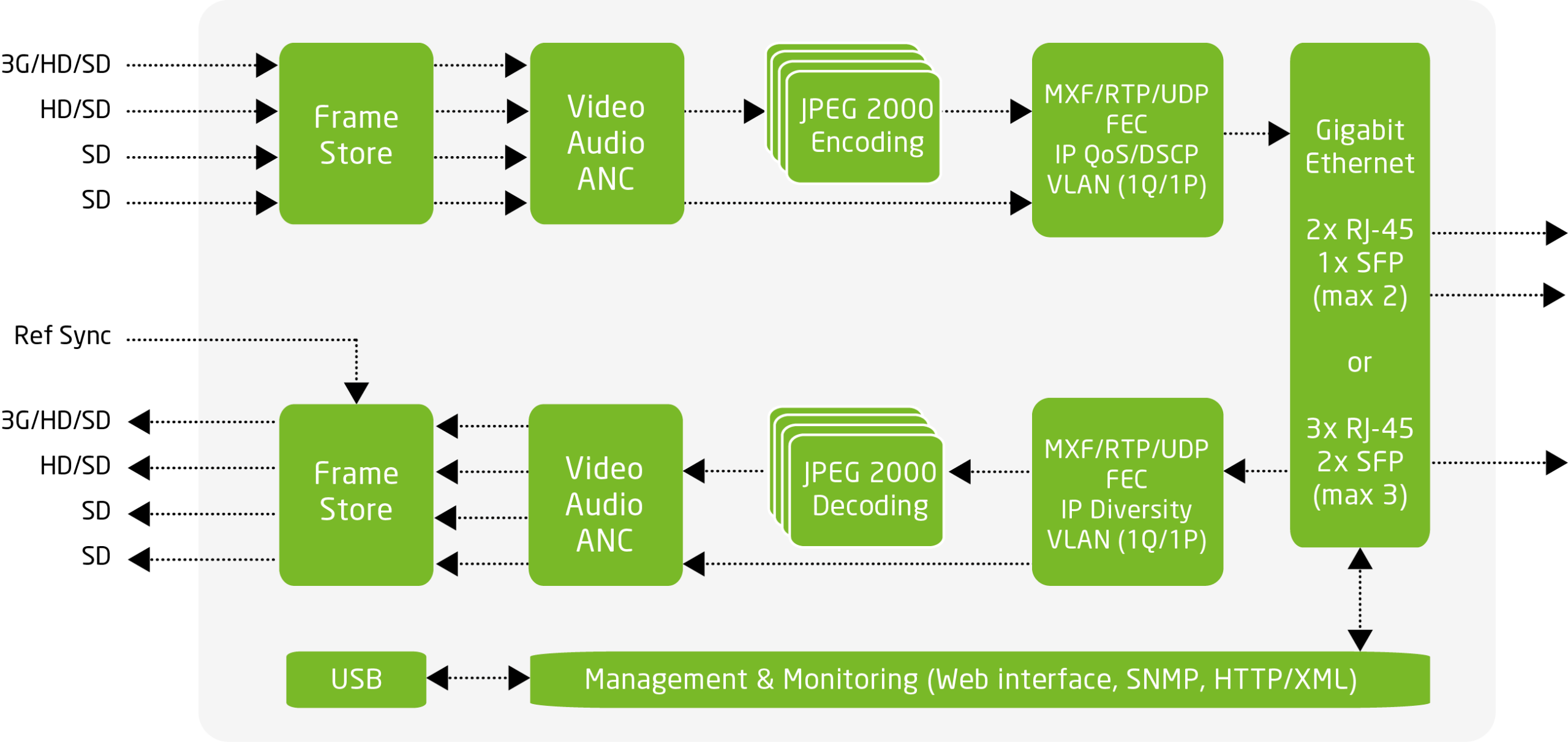

The TVG450 provides a simple solution for transport of broadcast quality television signals over IP networks. JPEG 2000 encoding technology enables transport of SD, HDTV, Stereoscopic 3D HDTV and 3 Gbit/s HDTV over Gigabit Ethernet links.

The JPEG 2000 Gateway enables broadcasters to utilize cost-efficient IP links for high quality, low latency contribution. MXF/IP encapsulation ensures perfect synchronization of all video, audio and ancillary data.

TVG450 enables service providers to utilize visually lossless, multi-generation resilient JPEG 2000 encoding, and IP/Ethernet technology, to build cost effective managed video services on top of IP-MPLS, Metro Ethernet or SDH/SONET transport networks.

Nevion Media Gateways can be configured via an easy-to-use web interface, which also offers extensive built-in monitoring. Dynamic and scheduled connection management for larger deployments can easily be facilitated with the VideoIPath media network management system.

Benefits

  • Compact, efficient and cost-effective solution for professional video transport
  • Flexible and scalable solution for encoding or decoding of SD, HD, 3G or stereoscopic 3D in in one unit
  • Visually lossless compression that is resilient to multi-generation encoding
  • Easy migration to IP: enables operators to utilize Ethernet technology to build cost effective IP-MPLS, Ethernet or SONET/SDH networks for video transport
  • Flawless operation from end to end with built-in Quality of Service and advanced error concealment

Applications

  • Professional broadcast contribution
  • Live sports and event contribution
  • Studio to studio media exchange
  • Managed video services over IP
  • Real-time transport of 3G, 3D, HD and SD over IP

Key Features

  • Multi-channel JPEG 2000 encoding for SD and HD
  • Visually lossless 4:2:2 10-bit video quality
  • Very low end-to-end latency
  • Robust transmission of HDTV signals over IP
  • Forward Error Correction with no additional latency required
  • Hitless switching with IP Diversity reception
  • Transparent audio and ancillary data handling
  • MXF/IP encapsulation ensures perfect synchronization
  • User-friendly configuration and control

  Nevion_TVG450_data_sheet_R1718

Nevion Fastbrowser

Adobe air applicaton to browse gui of cPorcessor, nSure and Video Gateway products. The fastbrowser will cache the gui files so that download of the gui files is only needed once. This will help out browsing units on slow IP links. If you have the Fastbrowser already installed you might have to de-install the older one version before installing the new version as it is not signed with a "trusted" certificate.

  nfb_2_0_1 ()

Nevion Detect

Software to detect and change IP address on units in the cProcessor, nSure and Video Gateway family.

  Nevion Detect 1.4.0 ()

MIBs

These mibs apply for the cProcessor, nSure and Video Gateway products, except the new 4000 platform.

  mibs ()

TVG450 3.8.24

The TVG450 software release 3.8.24 brings a number of new features and enhancements:
  • 3G-SDI: Added support for 1080p50, 1080p59.94 and 1080p60. Requires licence
  • DHCP: Added support for automatic IP address assignment by DHCP client. Configurable per interface
  • DNS: Registration of user supplied host name at DNS server via the DHCP server for identification of the host by name on the network. Hostname is specified per interface. Optional use of hostname instead of IP address to identify a unicast destination for video data transmission
  • Traceroute: Added possibillity to run traceroute from the user interface
  • Ancillary data: Added label for known DID/SDID on Ancillary Data page
  • Added test output option for Encoders. Can be enabled under the SDI-Port section in GUI

  TVG450_release_notes_3_8_24 (30/05/2014)

  TVG450_users_manual_rev_3_8_24

  TXP HTTP/XML protocol
