VS909 IP media edge processor

Categories: Product Family: Media Gateways, Ventura Functionality: IP adaptation Media Interface: RTP over IP, Transport Stream over IP Transport interface: IP/Ethernet Application Area: Contribution Networks Technology: SMPTE 2022-7

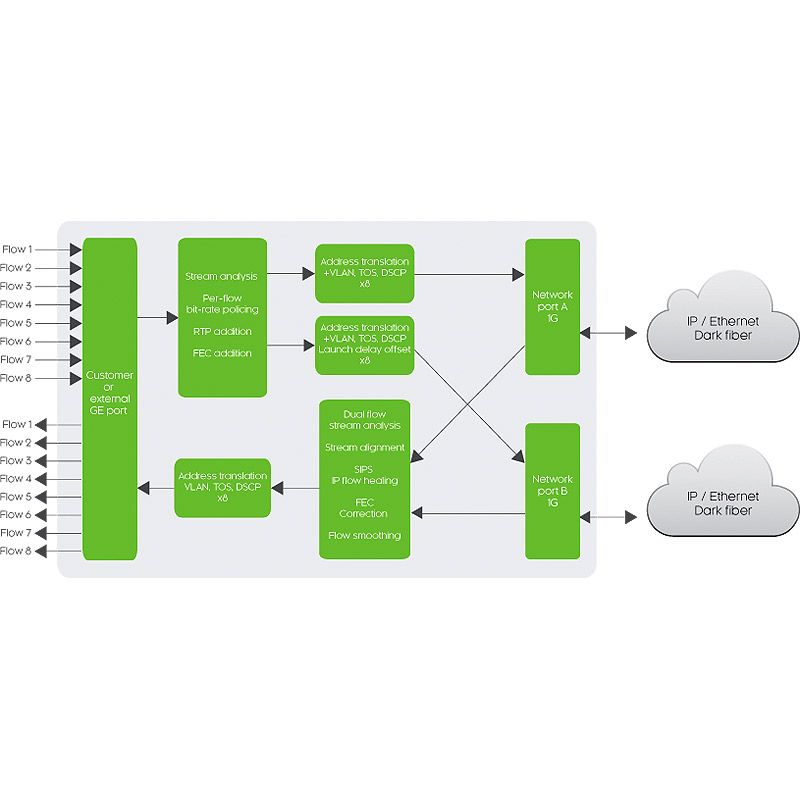

Nevion’s VS909 IP Media Edge Processor (IPME) is a multi-functional processing module in the Ventura family of modular video solutions.

The IPME incorporates advanced techniques for the processing and protection of any media flow interfaced to IP onto a single module. The VS909 provides an unprecedented range of security, protection, duplication, translation and quality assurance features including Forward Error Correction (FEC), Streaming Intelligent Packet Switching (SIPS) compliant to the SMPTE 2022-7 standard, and network address translation including multicast, unicast, VLAN, RTP, and many more.

Focusing entirely on processing IP flows to optimize network performance, the VS909 is a key addition to Nevion’s media over IP adapter. Due to its dedicated hardware packet processing and complete isolation between Ethernet ports, the VS909 is ideal for protecting the media network edge and providing the technology for IP networks to deliver the continuous quality performance demanded by professional broadcasters.

Applications

  • Professional broadcast contribution
  • Studio-to-studio media exchange
  • Live sports and event contribution
  • Managed video services over IP

Key Features

  • Transport of any RTP media flow on IP
  • Standards-based Forward Error Correction supporting SMPTE 2022-1 for protection against packet loss created by occasional network errors
  • Streaming Intelligent Packet Switching (SIPS) providing perfect video over IP protection switching using dual network feeds
  • Dual network interfaces supporting Gigabit Ethernet using SFP technology
  • Full IP Media Edge interface isolation with Bastion host level performance

  vs909_ds_r1514

  VS909_users_manual_rev_a
