Nevion Products

3GHD-EO-2-SFP Dual 3G/HD/SD-SDI electrical to optical converters

Order no: 22710

Categories: Product Family: Flashlink Functionality: Optical media conversion

The Flashlink 3GHD-EO-2-SFP is a SFP based multi bit-rate dual electrical to optical converter module.

It provides high performance media conversion of 3G-, HD- and SD-SDI signal formats in addition to DVB-ASI, SMPTE310M and MADI. Its modular design with the ability to quickly replace a whole unit with its optical modules attached makes the converter the first choice for mission critical applications.

The converter is utilizing SFPs that are pluggable devices, enabling easy exchange or upgrade of optical ports and minimizing spare stock. The transmitters supports all 18 channels of CWDM and standard 13T, making the product suitable for short and medium/ long haul applications. Optical standards compliance allows for easy inter-operability with third party fiber optical systems.

3GHD-EO-2-SFP complements the extensive range of Flashlink optical transport products covering video, audio and data signals, strengthening Flashlink reputation as the number one optical transport platform for broadcasters and network operators.

Benefits

  • High reliability
  • World class optical range
  • Full 18ch CWDM support

Applications

  • Applications:Dark fiber networks
    Optical video transport
    Broadcast contribution networks
    CWDM

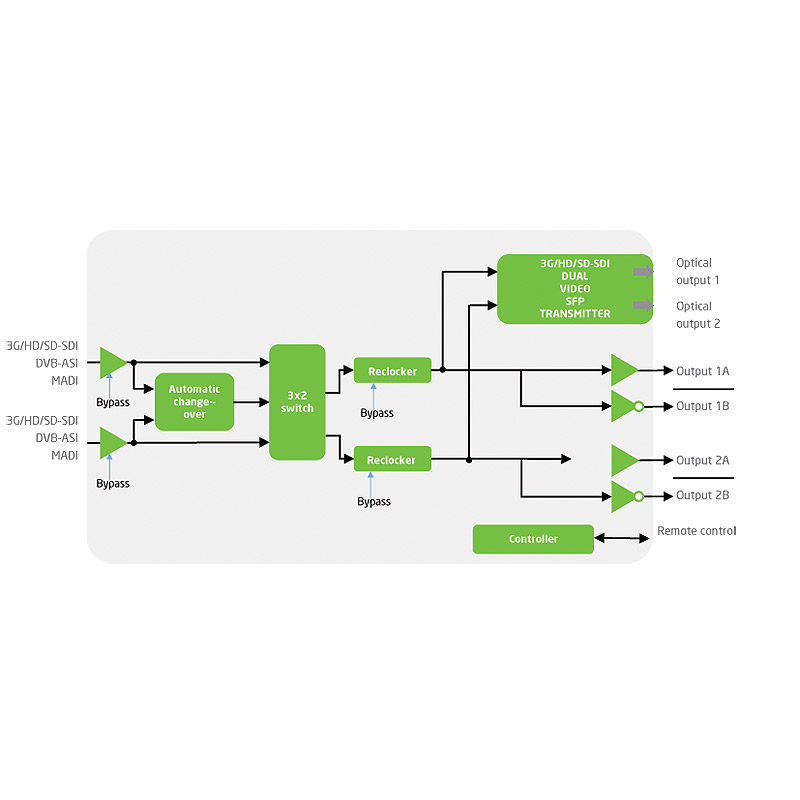

Key Features

  • Dual optical output
  • Dual electrical input
  • support 18 channel of CWDM
  • 2×2 input switch with ACO
  • 3G/HD/SD-SDI and DVB-ASI reclocker
  • 1×2 electrical DA per input
  • Temperature measurement

  3ghd-eo-2-sfp

GENERALLY AVAILABLE MODELS:

Item numberItem NameDescription long
227103GHD-EO-2-SFPDual 3G/HD/SD-SDI Electrical to Optical SFP based converter with SC/UPC connectors supporting CWDM. In addition to optical outputs the card features 1×2 electrical DA per input and SNMP /WEB interfacing thru Multicon. SFP not included.

SFPs are ordered separately.

APPLICABLE OPTICAL VIDEO SFPs:

Item numberItem NameDescription long
23033SFP-3G-EO-2-C1xxx/C1xxxDual channel optical CWDM transmitter SFP supporting 3G/HD/SD-SDI and ASI. They are available with all 18 CWDM wavelengths. These devices are designed to be compatible to pathological video signals.
19144SFP-3G-EO-2-13TDual channel optical transmitter SFP supporting data rates up to 3Gbps including SD, HD and 3G-SDI. These devices are designed to be compatible to pathological video signals.



DISCONTINUED MODELS:

Item numberItem NameDescription long
185803GHD-EO-2-13T, -7,5dBmDual 3G/HD/SD-SDI Electrical to Optical Converter, 19.4-2970Mbps, Input EQ, DA, RCL and ACO. With -5dBm 1310nm FP-laser.
500813GHD-EO-2-C1xxx/C1xxx, 0dBmDual 3G/HD/SD-SDI Electrical to Optical Converter, 19.4-2970Mbps, Input EQ, DA, RCL and ACO. With 0dBm CWDM DFB-laser. Specify from ITU-GRID: 1270-1610.

  3GHD-EO-2-SFP_UserManual
