3GHD-OE-2-SFP Dual 3G/HD/SD-SDI optical to electrical converter

Order no: 22711

Categories: Functionality: Optical media conversion Product Family: Flashlink

The Flashlink 3GHD-OE-2-SFP is a dual SFP based multi bit-rate optical to electrical converter module.

It provides high performance media conversion supporting 3G-, HD- and SD-SDI signal formats in addition to DVB-ASI, SMPTE310M and MADI. The modular design with the ability to quickly replace a whole unit with its optical modules attached makes the 3GHD-OE-2-SFP the first choice for mission critical applications.

The converter is utilizing SFP receivers that are pluggable devices, enabling easy exchange or upgrade of optical ports and minimizing spare stock. High quality SFP based optical PIN and APD receivers makes the product suitable for short and medium/ long haul applications. The standards compliance of Nevion Flashlink products also allows for easy inter-operability with third party fiber optical systems.

The units two optical converters has three electrical outputs each, which reduces the need for additional distribution amplifiers. The product also features an automatic change-over function between the two optical inputs.

3GHD-OE-2-SFP complements the extensive range of Flashlink optical transport products covering video, audio and data signals, strengthening Flashlink reputation as the number one optical transport platform for broadcasters and network operators.

Benefits

  • High reliability
  • World class optical range

Applications

  • Dark fiber networks
  • Optical video transport
  • Broadcast contribution networks
  • Optical change-over switching

Key Features

  • Dual optical input
  • Up to -30dBm optical sensitivity
  • Automatic change-over on inputs
  • 2×2 input switch
  • 3G/HD/SD-SDI and DVB-ASI reclocker
  • 1×3 electrical DA per converter
  • Optical level measurement
  • Temperature measurement

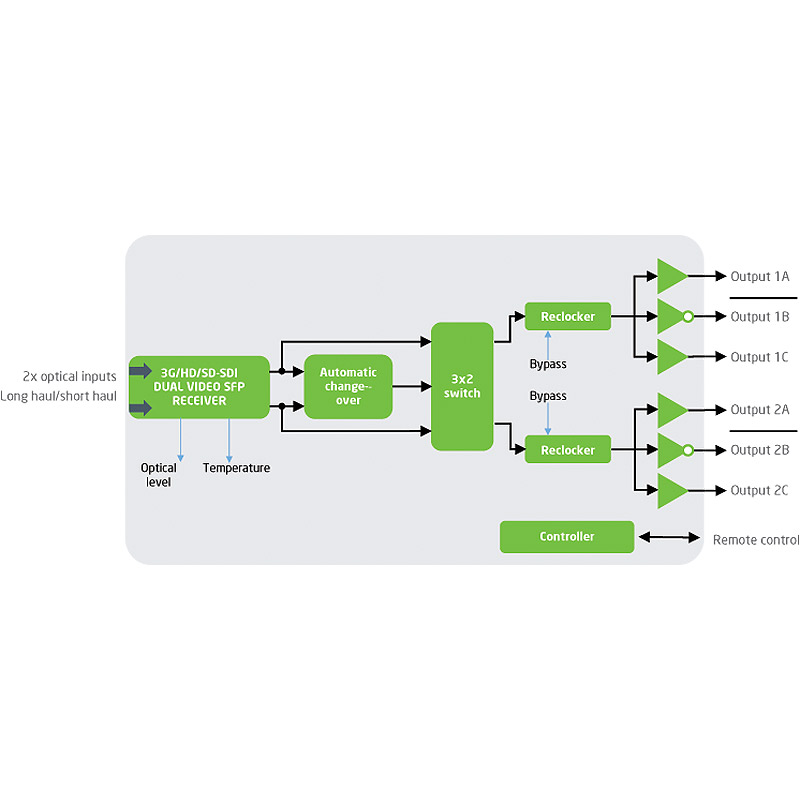

  3ghd-oe-2-sfp

SFPs are ordered separately.

APPLICABLE OPTICAL VIDEO SFPs:

Item numberItem NameDescription long
22180SFP-3G-OE-2-LDual channel optical long haul receiver SFP supporting data rates up to 3Gbps including SD, HD and 3G-SDI. These devices are designed to be compatible to pathological video signals.
19145SFP-3G-OE-2Dual channel optical receiver SFP supporting data rates up to 3Gbps including SD, HD and 3G-SDI. These devices are designed to be compatible to pathological video signals.

  3ghd-oe-2-sfp_0
