AAV-HD-DMUX – DISCONTINUED (LTB 2018-03-01) -

Categories: Functionality: Embedding/de-embedding

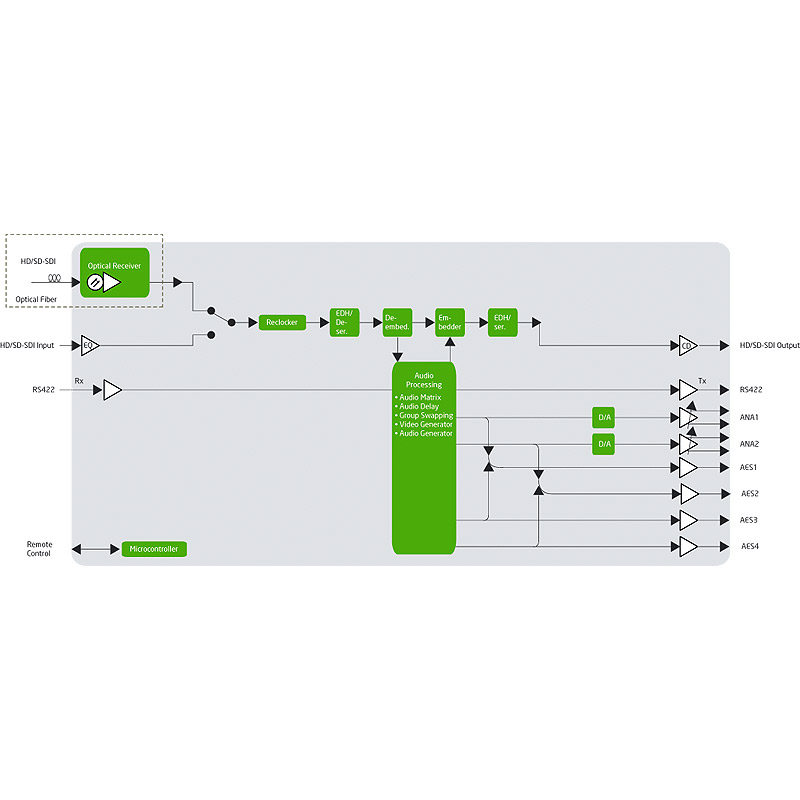

The AAV-HD-DMUX is a highly integrated  multi-rate audio de-embedding module in the Flashlink range, offering de-embedding of audio into AES or analog audio from a digital HD or SD serial video signal. The module is featured with optional optical receiver enabling easy integration into any optical video network.

The AAV-HD-DMUX’s small footprint, low power and Nevion panel control support are ideal for outside broadcast applications.The extensive manual control thru DIP switches enables the module to be efficiently used as a stand-alone unit enclosed in the small Flashlink N-box enclosure. The built-in de-glitcher makes the AAV-HD-DMUX the preferred choice for analog audio de-embedding applications since any switching is presented seemlessly at the AAV-HD-DMUX output.

Benefits

  • All-round embedder product
  • High level of integration
  • High quality audio conversion
  • Easy integration
  • Optical interfaces

Applications

  • Studio infrastructure
  • Studio interconnect
  • OB production
  • Audio embedding/de-embedding

Key Features

  • De-embed 4 analog audio signals
  • De-embed 4 AES3 digital audio and non-audio signals
  • De-embed all groups of audio from an HD or SD serial video stream
  • Copy or move audio groups without additional delay
  • Apply extra audio delay
  • Swap stereo channels
  • Make mono or sum from stereo signals
  • Transport asynchronous serial data
  • Video and audio signals generator
  • De-glitch correctly synchronized switched video

  aav-hd-dmux_ds

DISCONTINUED

Item No.Item NameDescription
18079AAV-HD-DMUXHD-SDI 4ch Analog Audio and 4ch AES De-embedder. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb.
17435AAV-HD-DMUX-RHD-SDI 4ch Analog Audio and 4ch AES De-embedder. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With single mode optical receiver.
17237AAV-SD-DMUXSD-SDI 4ch Analog Audio and 4ch AES De-embedder. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb.
17436AAV-SD-DMUX-RSD-SDI 4ch Analog Audio and 4ch AES De-embedder. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With single mode optical receiver.

  aav-hd-dmux.rev7_
