AAV-HD-XMUX – DISCONTINUED (LTB 2018-03-01) HD-SDI audio embedder for analog and digital audio

Categories:

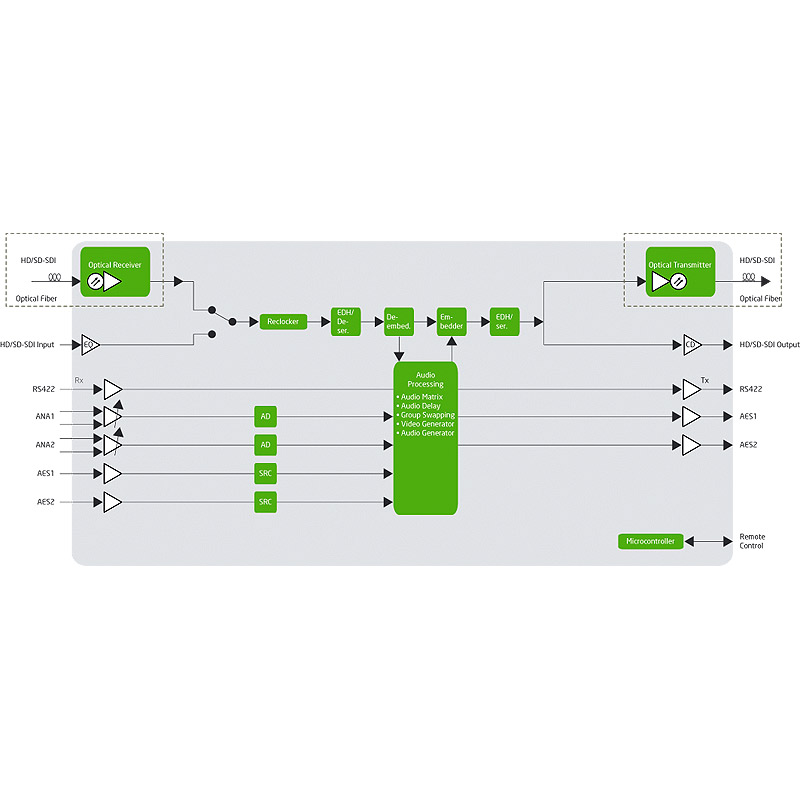

The AAV-HD-XMUX is a multi-rate highly integrated audio embedding module in the Flashlink range, offering simultaneous embedding and de-embedding of audio from a digital HD or SD serial video signal.

The AAV-HD-XMUX’s small footprint, low power and Nevion panel control support are ideal for outside broadcast applications.The extensive manual control thru DIP switches enables the module to be efficiently used as a stand-alone unit enclosed in the small Flashlink N-box enclosure. The built-in de-glitcher makes the AAV-HD-XMUX the preferred choice for analog audio embedding applications since any switching is presented seemlessly at the AAV-HD-MUX output.

The AAV-HD-XMUX is a multi-rate highly integrated audio embedding module in the Flashlink range, offering simultaneous embedding and de-embedding of audio from a digital HD or SD serial video signal.

The AAV-HD-XMUX’s small footprint, low power and Nevion panel control support are ideal for outside broadcast applications.The extensive manual control thru DIP switches enables the module to be efficiently used as a stand-alone unit enclosed in the small Flashlink N-box enclosure. The built-in de-glitcher makes the AAV-HD-XMUX the preferred choice for analog audio embedding applications since any switching is presented seemlessly at the AAV-HD-MUX output.

Benefits

  • All-round embedder product
  • High level of integration
  • High quality audio conversion
  • Easy integration
  • Optical interfaces

Applications

  • Studio infrastructure
  • Studio interconnect
  • OB production
  • Audio embedding/de-embedding

Key Features



  • Embed 4 analog audio signals
  • Embed 2 AES3 digital audio or non-audio signals
  • De-embed 2 AES3 digital audio or non-audio signals
  • De-embed and embed from all groups of audio from HD or SD serial streams
  • Copy or move audio groups without additional delay
  • Apply extra audio delay
  • Swap stereo channels
  • Make mono or sum from stereo signals
  • Optical receiver (optional)
  • Optical transmitter (optional)
  • Transport asynchronous serial data
  • Video and audio signals generator
  • De-glitch correctly synchronized switched video

  aav-hd-xmux_ds

DISCONTINUED

Item No.Item NameDescription
18073AAV-HD-XMUXHD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. GYDA enabled and SNMP support.
17429AAV-HD-XMUX-13T, -7.5dBmHD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1310nm -7.5dBm FP-laser.
50069AAV-HD-XMUX-C1xxxHD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With CWDM 0dBm DFB-laser. Specify from ITU-GRID: 1270-1610.
17431AAV-HD-XMUX-RHD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With optical receiver.
50105AAV-HD-XMUX-R-C1xxxHD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With CWDM 0dBm DFB-laser. Specify from ITU-GRID: 1270-1610. And optical receiver.



Item No.Item NameDescription
17236AAV-SD-XMUXSD-SDI 2ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. GYDA enabled and SNMP support.
17432AAV-SD-XMUX-13T, -7.5dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1310nm -7.5dBm FP-laser.
17434AAV-SD-XMUX-RSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With optical receiver.
18009AAV-SD-XMUX-13T, 0dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1310nm 0dBm DFB-laser.
18069AAV-SD-XMUX-15T, 0dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1550nm 0dBm DFB-laser.
18070AAV-SD-XMUX-R-13T, -7.5dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1310nm -7.5dBm FP-laser and optical receiver.
18071AAV-SD-XMUX-R-13T, 0dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1310nm 0dBm DFB-laser and optical receiver.
18072AAV-SD-XMUX-R-15T, 0dBmSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With 1550nm 0dBm DFB-laser and optical receiver.
50070AAV-SD-XMUX-C1xxxSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With CWDM 0dBm DFB-laser. Specify from ITU-GRID: 1270-1610.
50106AAV-SD-XMUX-R-C1xxxSD-SDI 4ch Analog Audio and 2ch AES Embedder and 2ch AES De-embedder. Sample rate converter on AES inputs. Built-in audio matrix and processor, variable audio delay. RS-422 emb./de-emb. With CWDM 0dBm DFB-laser. Specify from ITU-GRID: 1270-1610. And optical receiver.

  aav-hd-xmux
