Nevions Flashlink module CONV-SFP-4 is a broadcasters toolbox for their ad-hoc signal conversion, being electrical to optical, analog to digital, SDI to HDMI and more.

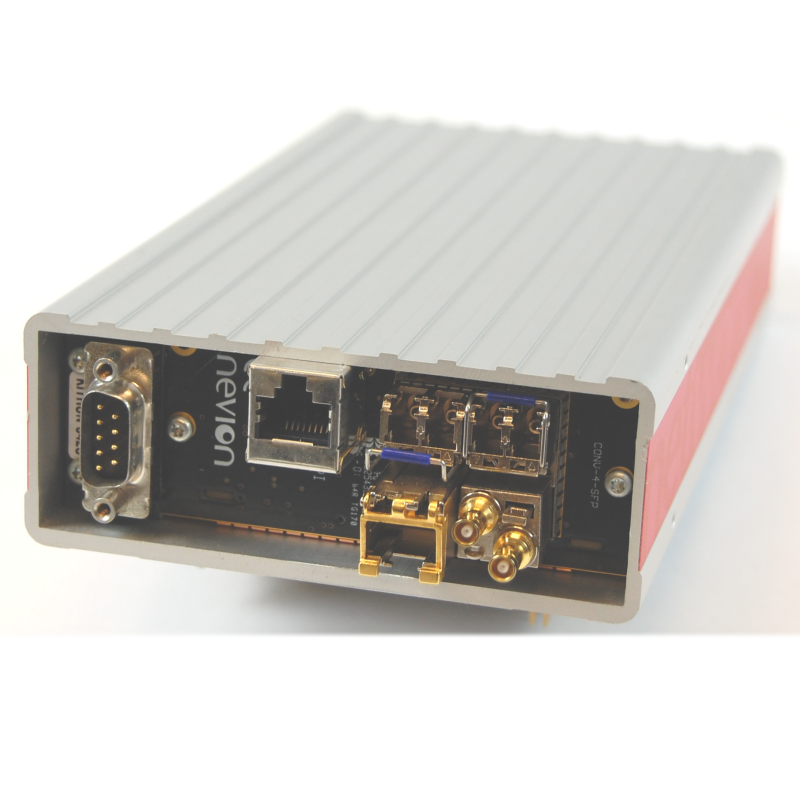

SFPs are easily replaced from the back of the unit to allow quick change of functionality making the unit ideal in event setups where unforeseen technical requirements pop up. As the unit fits in Nevions single card Flashlink enclosure N-box, the unit can be placed right where the conversion is needed, being on the stage or behind monitors. The unit also fits in the Flashlink 2RU modular frame for installation inside equipment rooms.

SNMP and web interface for monitoring of signal and module status is made available thru the Multicon control system.

Benefits:

  • High flexibility
  • Low cost
  • Small footprint
Applications:
  • Dark fiber networks
  • Optical video transport
  • Broadcast contribution networks
  • CWDM
Key Features:
  • Quad channel converter
  • 3G-SDI, HDMI, GbE, Analog video
  • Hot-swap
  • SFP status monitoring

  CONV-SFP-4 _DS

24028 CONV-SFP-4

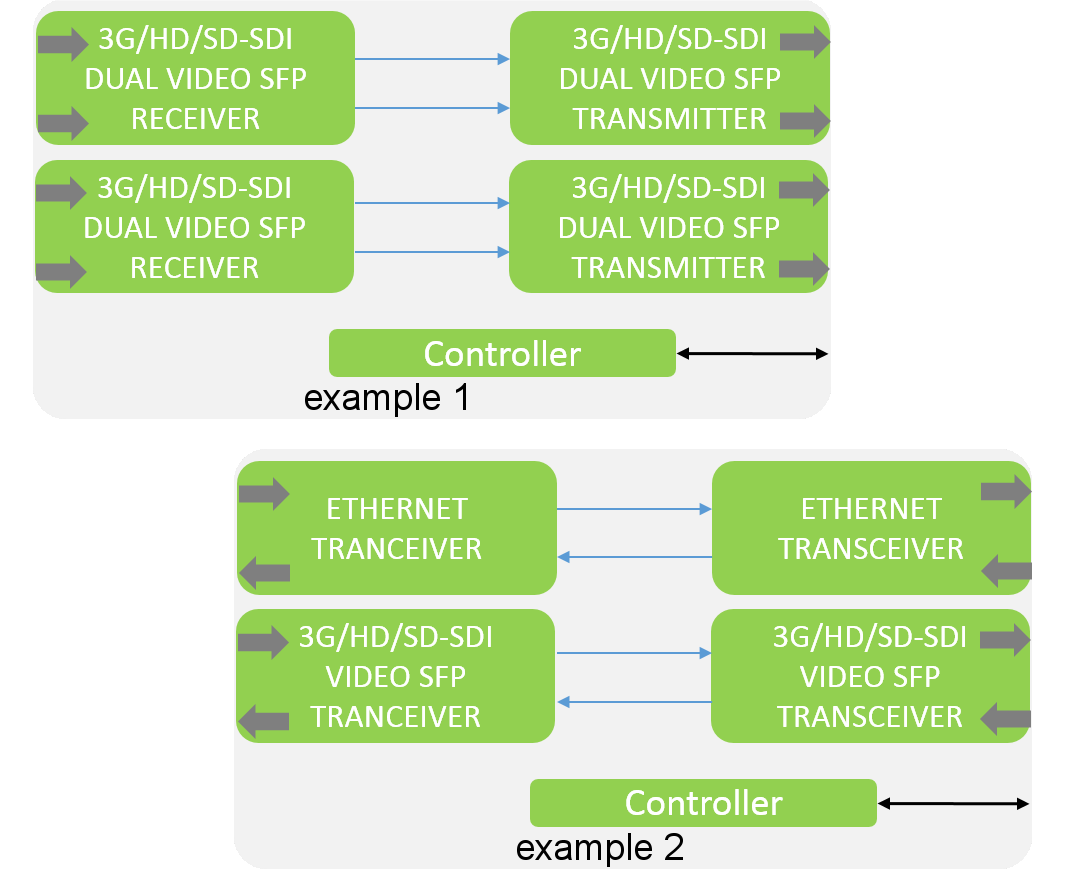

Quad channel multi-format SFP based converter card. Product supports both video and GbE SFPs. The product needs additional HW modules

24031 CONV-HW-3G-13T-2
Hardware module for dual non-reclocked 3G-SDI electrical to optical converter.

24033 CONV-HW-3G-13T-S
Hardware module for 3G-SDI electrical to optical converter and optical to electrical short haul converter

24029 CONV-HW-3G-CWDM-2
Hardware option for dual re-clocked 3G-SDI electrical to optical CWDM converter.

24034 CONV-HW-3G-CWDM-L
Hardware module for 3G-SDI electrical to optical CWDM converter and optical to electrical long haul converter.

24030 CONV-HW-3G-OE-L-2
Hardware module for dual reclocked 3G-SDI optical to electrical long haul converter.

24032 CONV-HW-3G-OE-S-2
Hardware module for dual non-reclocked 3G-SDI optical to electrical short haul converter.

24038 CONV-HW-ETH-13T-ER
Hardware module for Gigabit Ethernet electrical to optical, extended reach converter.

24037 CONV-HW-ETH-13T-LR
Hardware module for Gigabit Ethernet electrical to optical, long reach converter.

24035 CONV-HW-ETH-CWDM-ER
Hardware module for Gigabit Ethernet electrical to optical CWDM, extended reach converter.

24036 CONV-HW-ETH-CWDM-ZR
Hardware module for Gigabit Ethernet electrical to optical CWDM, ultra extended reach converter.

24039 CONV-HW-NBOX
Hardware enclosure for CONV-SFP-4

Electrical video ports are avaiable as DIN1.0/2.3 or HD-BNC. Specify the conenctor type on the order.

  CONV-SFP-4
