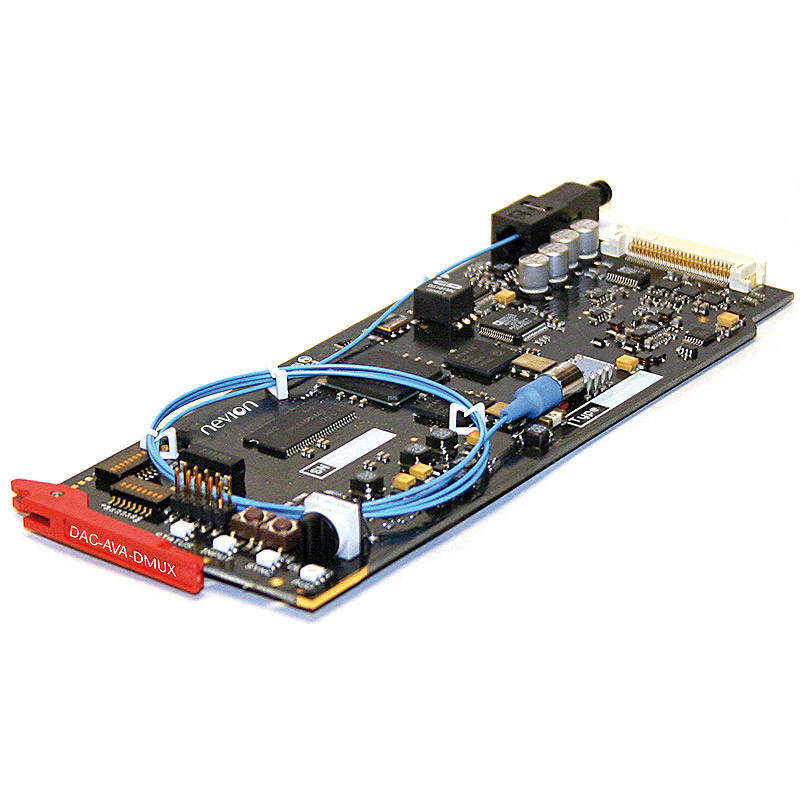

DAC-AVA-DMUX+ – DISCONTINUED (LTB 01.03.2018) 12bit digital to analog HD/SD converter with frame synchronizer and audio de-embedder

Categories:

The Flashlink DAC-AVA-DMUX+ is a multipurpose processing card offering 12 bit HD/SD digital to analog video converter with frame synchronizer and audio de-embedding.

The built-in frame synchronizer with de-glitcher and analog/digital audio de-embedder capabilities make the DAC-AVA-DMUX+ the preferred choice for signal conversion applications.

It can be used as an SD and/or HD A/D converter, an SD and/or HD frame synchronizer, an analog/digital audio de-embedder or a mix of the above. Feature limited product versions are available that can be software upgraded to its full feature set at any time. The product is also available with an optical input port.

The extensive manual control through DIP, push and rotary switches enables the module to be efficiently used as a stand-alone unit, enclosed in the small Flashlink N-Box enclosure.

Benefits

  • Extends use of analog infrastructure
  • Gives a migration path from analog to HD infrastructures
  • Future proof
  • Universal optical receiver
  • Multi purpose device
  • High integration
  • High precision conversion

Applications

  • Analog, SD-SDI and HD-SDI studio infrastructure
  • Dark fiber transport
  • Signal conversion
  • Frame synchronization
  • Audio monitoring

Key Features

  • 12 bit video conversion
  • 3 analog video outputs supporting YPbPr, 3xCVBS RGB and S-VHS
  • 2 SDI outputs
  • 1 AES output (WECO)
  • 1 stereo audio output (WECO)
  • Frame synchronizer with de-glitcher
  • Audio matrix and processing
  • Option for optical receiver

  dac-ava-dmux_ds_0

DISCONTINUED

22985DAC-AVA-DMUX-R+12bit digital to analog HD/SD-SDI video converter with frame synchronizer, audio de-embedding and optical receiver. Featuring 3x analogue video output that can be configured to YPbPr/ 3xCVBS/ RGB/ S-VHS, AES/EBU output, stereo analog audio output and 2x SDI outputs that are frame synchronized. Hardware only. Product needs options for format support, SDI frame sync. support and audio ports to enable functionality.
22760DAC-AVA-DMUX+12bit digital to analog HD/SD-SDI video converter with frame synchronizer and audio de-embedding. Featuring 3x analogue video output that can be configured to YPbPr/ 3xCVBS/ RGB/ S-VHS, AES/EBU output, stereo analog audio output and 2x SDI outputs that are frame synchronized. Hardware only. Product needs options for format support, SDI frame sync. support and audio ports to enable functionality.
22763DAC OPT FRAMESYNCUpgrade to enable SDI output w/ frame synchronized on DAC-AVA-DMUX+ products.
22761DAC OPT FORMAT SDUpgrade to enable SD format support on DAC-AVA-DMUX+ products.
22762DAC OPT FORMAT HDUpgrade to enable HD format support on DAC-AVA-DMUX+ products.
22764DAC OPT AUDIO OUTPUTUpgrade to enable 1x AES output and 1x stereo audio output on DAC-AVA-DMUX+ products.

  DAC-AVA-DMUX Rev.A
