Flashlink Compact 36 channel optical converter in 1RU with built-in CWDM filters

Categories: Tags: , Product Family: Flashlink Functionality: Optical media conversion

Flashlink Compact 36 channel optical converters in 1 RU are perfect for transporting multiple SD/HD/3G-SDI signals in-house or through campus.

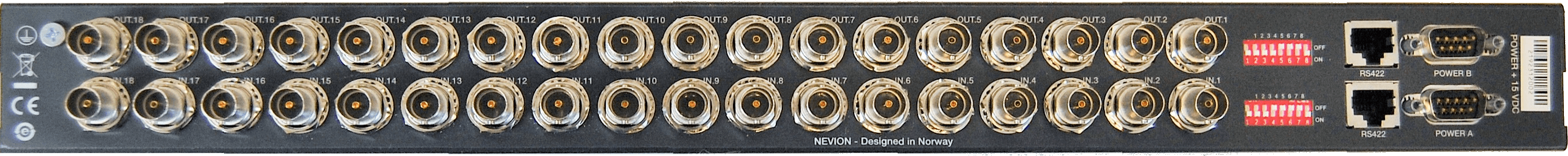

The product gives easy access to all optical SFP modules from the front of the chassis enabling easy upgrade of the system. In addition, two optical 18-channel CWDM filters can be fitted in the front, allowing all signals to be transported over two fibers. With the electrical cabling at the back, the more fragile optical cabling are separated from the rest of the cables ensuring easier and safer cable routing in the broadcast facility.

The Flashlink Compact also has dual set replaceable fans that are accessible from the front and that can be quickly dismounted—ensuring no down time during service. The dual fans are monitored separately, in conjunction with the redundant power supplies and signal status, through the Multicon web or SNMP interfaces, ensuring full reporting of system performance at all times.

Benefits

  • Allows more services on existing fiber networks
  • High density reduces or frees rack space
  • High reliability reduces maintenance costs
  • Easy integration to management systems



Applications

  • Broadcast in-house/campus networking
  • Professional broadcast contribution
  • Live media networking
  • Fiber video networks

Key Features

  • High density, 36 channels on 1RU
  • Built-in 2x 18 channel CWDM filters
  • External redundant power supply
  • Re-clocking of 3G/HD/SD-SDI and DVB-ASI
  • Cable reach: 150m @ 3G-SDI, 250m @ HD-SDI, 300m @ SD-SDI
  • SNMP and Web interface thru Multicon Gyda
  • Signal status LED for each optical signal
  • Low power consumption

Document   fc-3g-eo-oe_ds-36_0

Item number Item Name Description long
21928 FC-3G-EO-18 High density 1RU 18 channel electrical to optical converter chassis including 1x PSU. Optical converter modules (SFPs) are not included.
22983 FC-3G-EO-18+1C High density 1RU 18 channel electrical to optical converter chassis including 1x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21925 FC-3G-EO-36 High density 1RU 36 channel electrical to optical converter chassis including 1x PSU. Optical converter modules (SFPs) are not included.
21919 FC-3G-EO-36+1C High density 1RU 36 channel electrical to optical converter chassis including 1x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21922 FC-3G-EO-36+2C High density 1RU 36 channel electrical to optical converter chassis including 2 built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21926 FC-3G-EO-OE-36 High density 1RU 18 channel electrical to optical and 18 channel optical to electrical converter chassis including 1x PSU. Optical converter modules (SFPs) are not included.
21920 FC-3G-EO-OE-36+1C High density 1RU 18 channel electrical to optical and 18 channel optical to electrical converter chassis including 1x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21923 FC-3G-EO-OE-36+2C High density 1RU 18 channel electrical to optical and 18 channel optical to electrical converter chassis including 2x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21927 FC-3G-OE-18 High density 1RU 18 channel optical to electrical converter chassis including 1x PSU. Optical converter modules (SFPs) are not included.
22984 FC-3G-OE-18+1C High density 1RU 18 channel optical to electrical converter chassis including 1x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21924 FC-3G-OE-36 High density 1RU 36 channel optical to electrical converter chassis including 1x PSU. Optical converter modules (SFPs) are not included.
21918 FC-3G-OE-36+1C High density 1RU 36 channel optical to electrical converter chassis including 1x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.
21921 FC-3G-OE-36+2C High density 1RU 36 channel optical to electrical converter chassis including 2x built-in 18 channel CWDM filter and 1x PSU. Optical converter modules (SFPs) are not included.

Document   fc-pwr

Document   fc-3g-eooe

Document   flashlinkcompactii.revb_
