SDI-DVI-2-SFP Dual 3G-SDI to DVI/HDMI converter

Order no: 22759

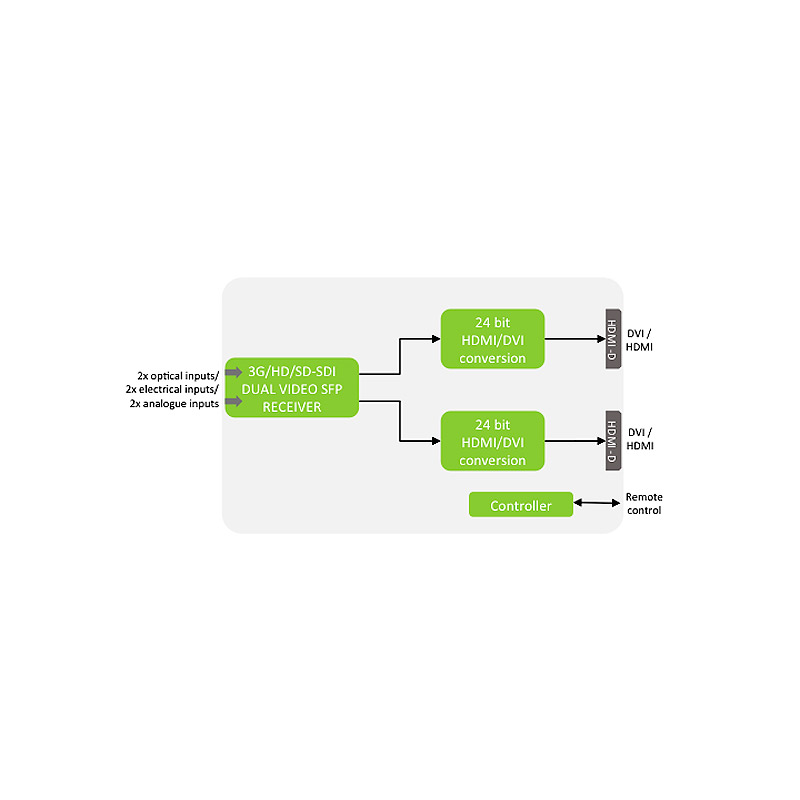

The Nevion Flashlink SDI-DVI-2 is a dual channel 3G/HD/SD-SDI to HDMI converter designed for fiber transport applications.

SDI-DVI-2 features SFP based SDI interface that allows utilizing the Nevions range of dual Video SFP receivers. These receivers covers optical receivers, electrical interfaces as well as analog PAL/NTSC interfaces.

Together with DVI-SDI-2 this card can be used as an optical extender, transporting DVI and HDMI signals optically over 60km over a single wavelength. Up to 18 channels of HDMI can be transported over a single fiber fiber when using Flashlink CWDM-18 filter.

SDI-DVI-2 can be enclosed in any flashlink housing including the small single card enclosure N-box. This makes it suitable for throw down applications like monitor interfacing.

Benefits

  • High density HDMI/DVI conversion
  • High fiber utilization
  • Long distance HDMI/DVI transport

Applications

  • Fiber transport
  • Monitor interfacing
  • HDMI conversion

Key Features

  • Multi format support including:
    • 1080P 50/59.94Hz
    • 1080i 50/59.94Hz
    • 720P 50/59.94Hz
    • 576i 50Hz, 480i 59.94Hz
  • Deembedding of two AES channel, group 1
  • Support Nevions Video SFP receivers including:
    • Dual short haul and long haul optical receiver
    • Dual electrical 3G/HD/SD-SDI receiver
    • Dual PAL/NTSC receiver

  SDI-DVI-2_DS_5

  sdi-dvi-2-sfp.revc_
