TVG425 ASI-IP Transport Stream Gateway

Categories: Product Family: Video Gateways

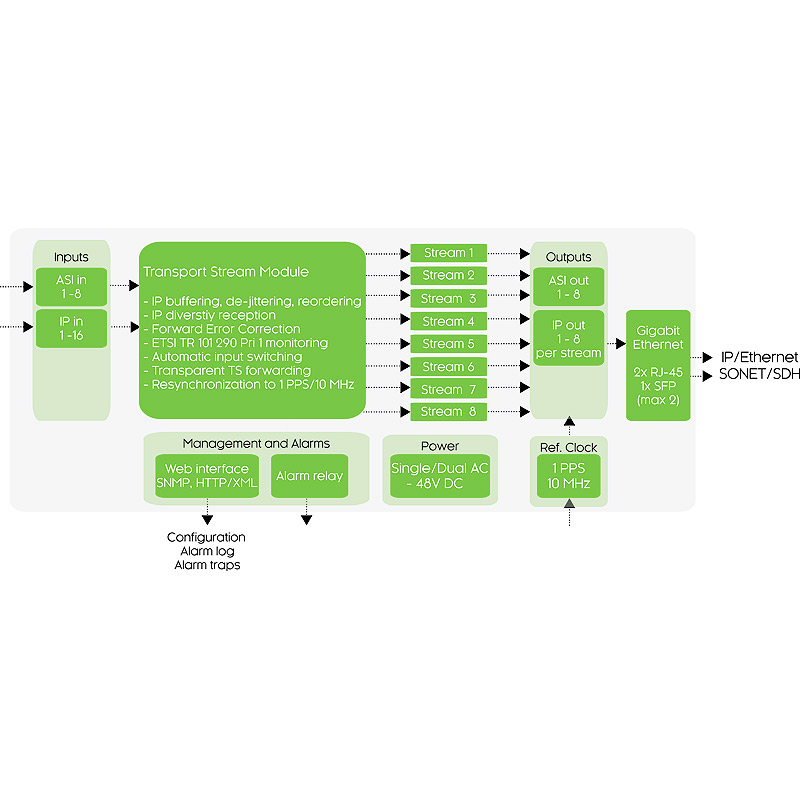

The TVG425 provides transparent handling of up to 8 independent MPEG Transport Streams, flexible interfacing with support for ASI, Ethernet and SONET/SDH, built-in input TS monitoring as well as multiple output copies and input switching capabilities that enable cost-effective and highly redundant video transport solutions.

By taking advantage of the inherent flexibility of IP, broadcasters and service providers are offered an efficient, affordable and scalable solution for professional quality video contribution and distribution.

This product may have limited availability, please contact Nevion sales or use the form below.

Check out the new Virtuoso media functions for ASI-IP conversion and TS-IP gateway/monitoring/switching applications!

Benefits

  • Leverages the inherent flexibility of IP and Ethernet
  • Efficient, affordable and scalable solution for professional quality video contribution and distribution
  • Enable the implementation of revenue-generating professional Wide Area Networks for the video transport
  • Add new channels via software license upgrades, without affecting other running services
  • Flexibility: handles any MPEG-2 transport stream carrying MPEG-2, MPEG-4 (H.264) compressed video in Standard Definition as well as High Definition

Applications

  • Professional broadcast contribution and distribution
  • Transport stream interface adaptation (ASI, IP, SONET/SDH)
  • IP-to-IP applications, e.g. multicast to unicast conversion
  • Managed video services over IP
  • DVB-T/T2/H distribution over IP in SFN/MFN networks

Key Features

  • Transmission of up to 8 MPEG-2 Transport Streams (TS)
  • Flexible interfacing with support for ASI and IP on dual Gigabit Ethernet interfaces
  • Multiple output copies on ASI and IP
  • Support for IP multicast, unicast and multiple unicast
  • Automatic input switching between redundant TS sources
  • IP Diversity for hitless RTP-layer switching
  • Embedded Redundancy for autonomous 1+1 main/standby failover
  • Full bidirectional operation on a port-by-port basis
  • Input signal monitoring according to ETSI TR 101 290 Priority 1
  • Easy-to-use web interface

Document   Nevion_TVG425_data_sheet_R1630

Document   TVG425_users_manual_rev_3_4

Document   TXP HTTP/XML protocol
