UDC-3G-XMUX4+ – LEGACY (LTB 31.12.2018) 3G-SDI up/down/cross converter with frame sync and embedder/de-embedder

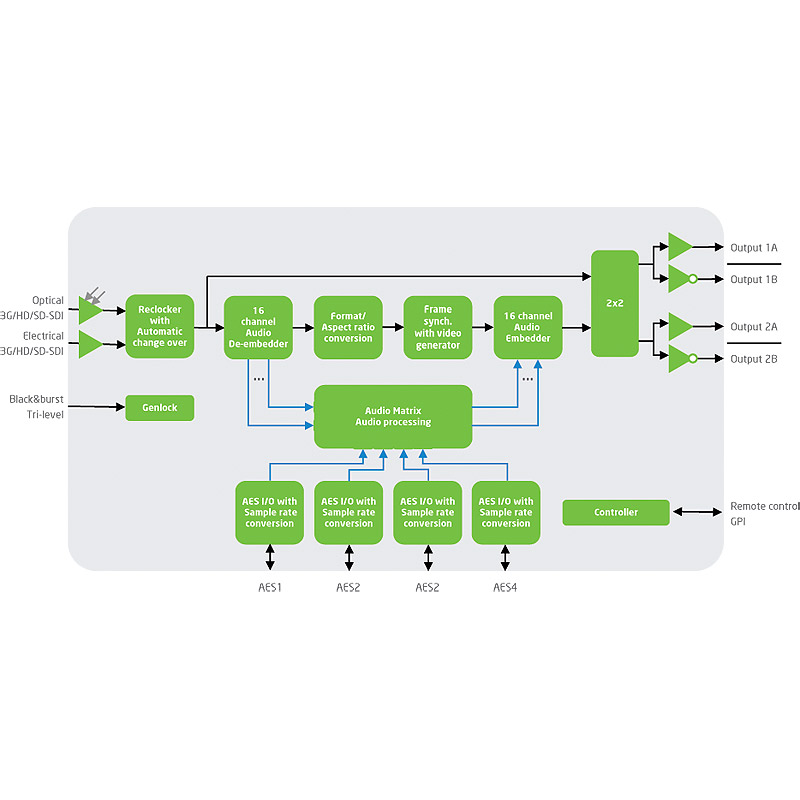

Nevion’s all-in-one signal processing platform supports standard conversion and format conversion between 50Hz and 59.94Hz/60Hz frame rates and525i/625i/720P/1080i/1080P formats.

The built-in frame synchronizer with de-glitcher and the audio embedder/ deembedder capabilities make the UDC-3G-XMUX4+ the preferred choice for format conversion applications. When used in front of or after a routing switcher the output is always error-free, even when switching between different input formats. Additionally, all synchronous switching is seamlessly presented at the output of the UDC-3G-XMUX4.

Its small footprint, low power consumption and Nevion panel control support makes it ideal for outside broadcast applications. The extensive manual control thru diP, push and rotary switches enables the module to be efficiently used as a stand-alone unit, enclosed in the small Flashlink N-box enclosure.

Benefits

  • All-round product
  • High level of integration
  • Broadcast quality format conversion
  • General purpose standards conversion
  • Simultaneous de-embedding and embedding
  • Optical interface

Applications

  • Studio infrastructure
  • Studio interconnect
  • OB production
  • Format conversion
  • Aspect ratio conversion
  • Frame synchronization
  • Audio embedding/de-embedding

Key Features

  • Broadcast quality format conversion with motion adaptive de-interlacer
  • Frame-rate conversion between 50Hz and 59.94/60Hz video standards
  • Aspect ratio conversion controllable by AFD, WSS, VI and GPI
  • Automatic and user configurable modes of operation
  • Four configurable AES I/Os for audio embedding and de-embedding
  • Built-in frame synchronizer with de-glitcher ensuring error-free switching even between input formats
  • Extensive audio processing core including individual gain, left-right manipulation and stereo cross-point matrix
  • Full Active Format description (AFD) support
  • On-screen label generator
  • Time code and closed caption conversion between formats
  • Video generator with moving pattern and OSD
  • Optical short haul interface (optional)

  udc-3g-xmux4_ds

21003UDC-3G-XMUX4+SD/HD/3G up/down/cross converter with 50/60Hz conversion, frame synchronizer and 4 AES I/O ports for embedding and de-embedding. Hardware only. Product needs options for input format, output format and audio ports enable to unlock functionality.
21004UDC-3G-XMUX4-R+SD/HD/3G up/down/cross converter with 50/60Hz conversion, frame synchronizer and 4 AES I/O ports for embedding and de-embedding with optical receiver. Hardware only. Product needs options for input format, output format and audio ports enable to unlock functionality.
21005UDC-3G-XMUX4-R-L+SD/HD/3G up/down/cross converter with 50/60Hz conversion, frame synchronizer and 4 AES I/O ports for embedding and de-embedding with optical long haul receiver. Hardware only. Product needs options for input format, output format and audio ports enable to unlock functionality.
21006UDC OPT INPUT SDUpgrade to enable SD input support on UDC-3G-XMUX4+ products.
21007UDC OPT INPUT HDUpgrade to enable HD input support on UDC-3G-XMUX4+ products.
21008UDC OPT INPUT 3GUpgrade to enable 3G input support on UDC-3G-XMUX4+ products.
21009UDC OPT OUTPUT SDUpgrade to enable SD output support on UDC-3G-XMUX4+ products.
21010UDC OPT OUTPUT HDUpgrade to enable HD output support on UDC-3G-XMUX4+ products.
21011UDC OPT OUTPUT 3GUpgrade to enable 3G output support on UDC-3G-XMUX4+ products.
21012UDC OPT AES I/OUpgrade to enable AES ports on UDC-3G-XMUX4+ products.

  User Manual UDC-3G-XMUX4
