The CP505 ATSC Processor offers flexible ASI, SMPTE 310 and IP network adaptation and advanced Transport Stream processing in a user-friendly and compact 1RU solution.

The CP505 provides a powerful solution for adaptation of MPEG Transport Streams to ATSC broadcast and other transport stream processing applications. The CP505 is offered in two different variants.

The basic model provides format conversion between ASI, SMPTE-310 or Transport Stream on IP/GigE (electical 1000Base-T or SFP), STM-1/OC-3 or E3/T3-DS3.

The advanced model offers the basic features plus powerful PID and program filtering with ATSC PSIP and DVB SI processing capabilities.



The CP505 supports dynamic PSIP generation for electronic program guide data, interfacing to EPG providers via the ATSC standard PMCP XML-based interface via HTTP or FTP connections. The CP505 has succesfully been integrated with several PSIP data providers, including MediaStar PSIP from Broadcast Interactive Media.

Benefits

  • The CP505 ATSC Processor provides powerful adaptation of MPEG-2 Transport Streams for the ATSC broadcast market
  • Stand-alone operation
  • Cost-effective solution for regional service adaptation
  • Easy-to-use web interface
  • Low power consumption

Applications

  • Signal adaptation and interface conversion between IP, ASI, SMPTE 310 and optional SONET/SDH at broadcast centers, headends, transmitter sites
  • Dynamic PSIP generation from PMCP XML file from EPG provider
  • PSIP rebranding at transmitter sites (regional VCT adaptation)
  • PID and service filtering with automatic PSI/PSIP/SI updates
  • Insertion of PSI/PSIP/SI service information from PSI/PSIP/SI generators and service providers
  • Output diversity for increased reliability including unicast, multicast and multicast to unicast conversion

Key Features

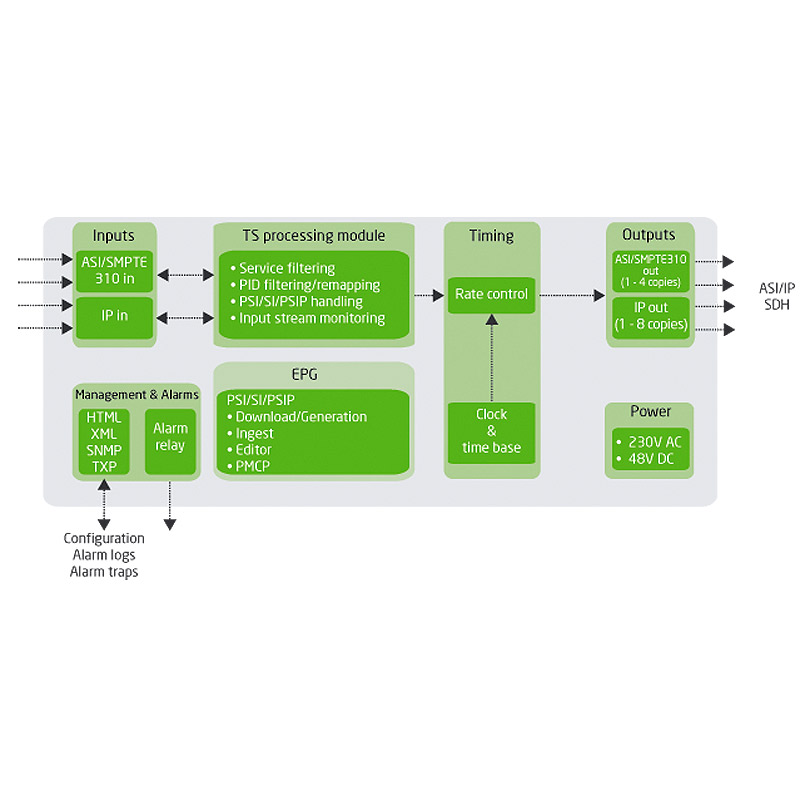

  • Format conversion of MPEG-2 signals between SMPTE-310, ASI and IP interfaces
  • FEC insertion and decoding on IP signals
  • Input switching between transport stream input signals

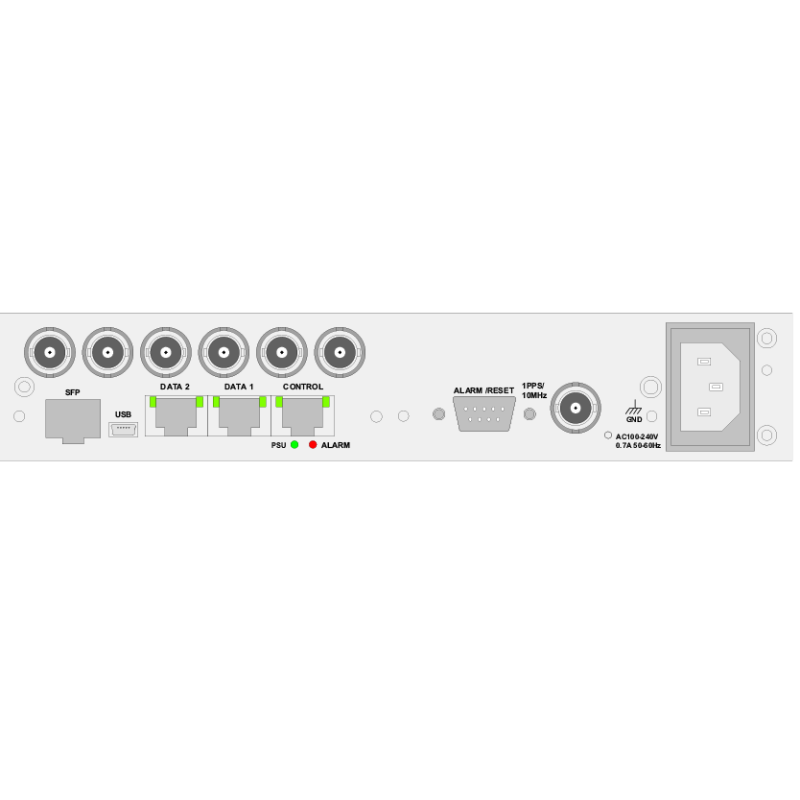

  • Dual IP, Dual ASI, Dual SMPTE310 inputs
  • Flexible transport stream processing (advanced version)
  • Powerful PSIP rebranding and processing (advanced version)
  • Static PSIP generation and dynamic PSIP insertion (advanced version)
  • Powerful PSI/SI processing (advanced version)
  • Dynamic PSIP generation from PMCP XML file
  • Transport Stream monitoring
  • Automatic input switching on loss of signal or critical alarm
  • User-friendly configuration and control

  Nevion_CP505_data_sheet_R1911

Nevion Fastbrowser

Adobe air applicaton to browse gui of cPorcessor, nSure and Video Gateway products. The fastbrowser will cache the gui files so that download of the gui files is only needed once. This will help out browsing units on slow IP links. If you have the Fastbrowser already installed you might have to de-install the older one version before installing the new version as it is not signed with a "trusted" certificate.

  nfb_2_0_1 ()

Nevion Detect

Software to detect and change IP address on units in the cProcessor, nSure and Video Gateway family.

  Nevion Detect 1.4.0 ()

MIBs

These mibs apply for the cProcessor, nSure and Video Gateway products, except the new 4000 platform.

  mibs ()

CP505 2.4.0

The CP505 software release 2.4.0 brings a number of fixes and enhancements, see release notes for full details.

  CP505_release_notes_2_4_0 (29/08/2014)

  CP505_User_Manual_2_0_0
