Nevion Products

NOTE: This product is a version, a variant or a module of a main product. For further information about this product, visit the main product page.

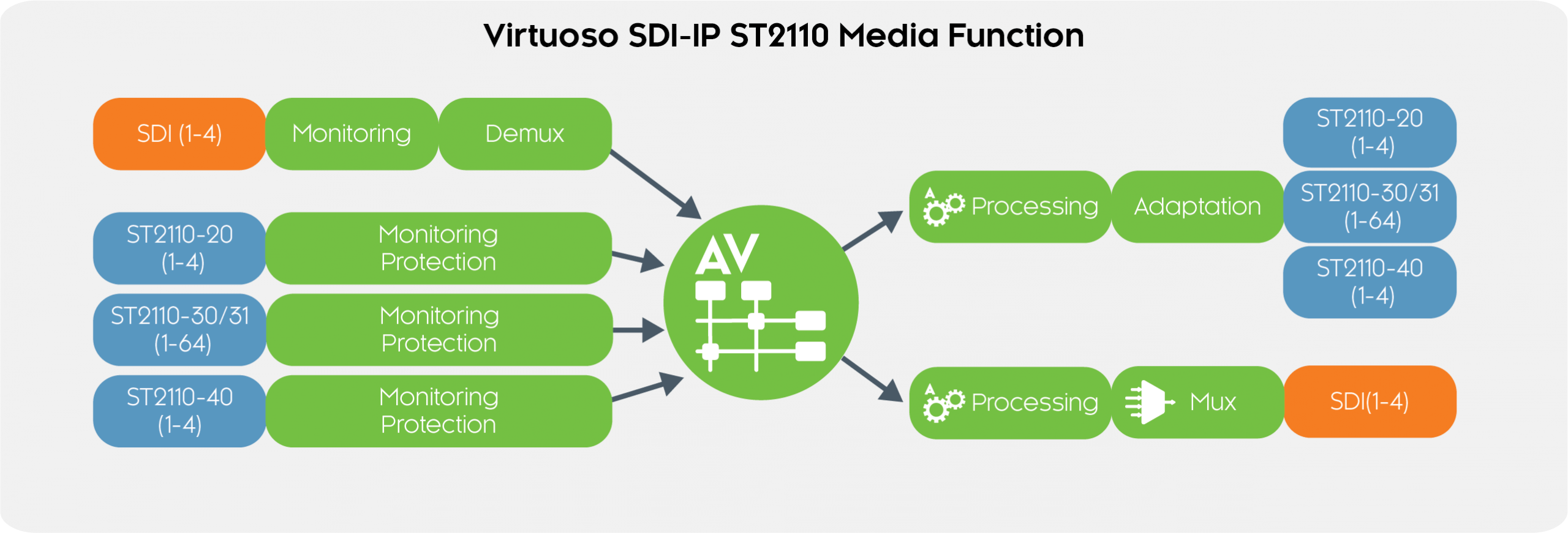

Nevion Virtuoso’s SDI-IP ST2110 Media Function offers a set of video and audio processing functions for use in live IP production applications.

The SDI-IP ST2110 Media Function supports adaptation, synchronization and processing of uncompressed video and audio signals. The software supports conversion between baseband SDI and SMPTE ST2110 IP, with flexible audio processing and routing, PTP/SMPTE 2059 frame synchronization and delay management.

Audio processing includes de-embedding of SDI and IP audio inputs, flexible internal routing and embedding, as well as per-channel audio gain and delay control.

High availability is ensured with ST2022-7 hitless/ seamless IP protection switching, which is supported for all video and audio streams with no impact on audio channel input/output density.

The SDI-IP ST2110 Media Function runs on the Virtuoso High Bit Rate Media Accelerator and supports electrical and optical SDI interfaces via video SFPs and breakout cables, and IP video/audio via dual 10GE.

For UHD adaptation of 12G-SDI to SMPTE 2110, check out the Virtuoso SDI-IP UHD media function.

Nevion Virtuoso

Applications

  • IP in the facilities
  • IP production infrastructure
  • In-house/campus media networks
  • Audio/video processing

Key features

  • Multi standard connectivity
  • 3G/HD/SD-SDI via video SFPs
  • Uncompressed video over IP/10GE
  • SMPTE 2110 support
  • SMPTE 2022-7 hitless merge protection for video and audio
  • Any-to-any conversion
  • PTP timing and sync (IEEE 1588v2, SMPTE 2059)
  • Video/Audio processing
  • Audio/audio frame synchronization
  • Audio embedding/de-embedding
  • Audio routing, shuffling and delay
  • Video routing and delay
  • Thumbnails of input and output video
  • In-depth service monitoring incl. video freeze/black frame and audio silence detection

Document   Nevion case study - Discovery internationally distributed production 20210114

Document   TV2 case study 20170607

Document   Plazamedia IP Infrastructure Press Release
