Nevion Products

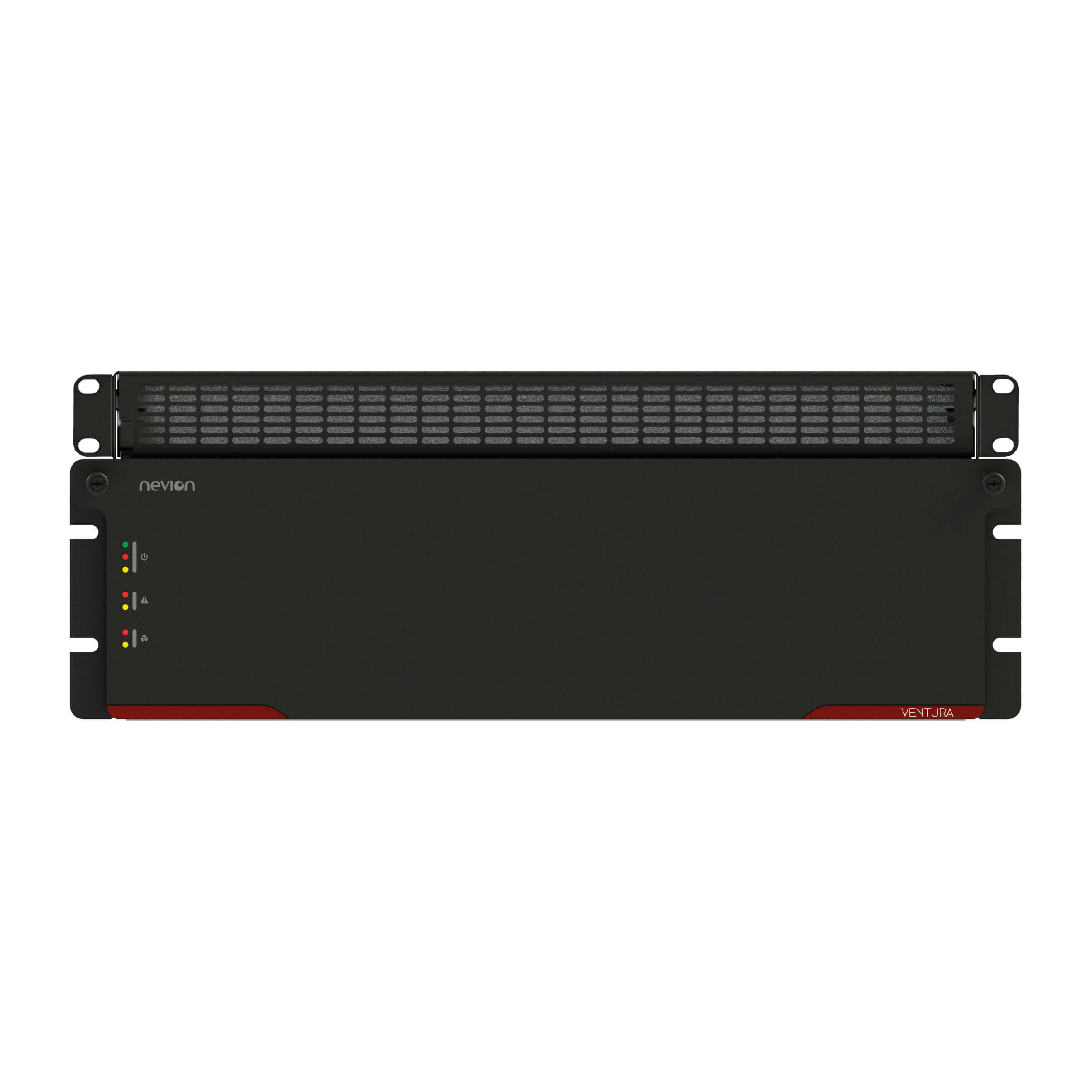

VS103-90X 4U Modular Frame

Categories: Product Family: Ventura Functionality: Chassis and accessories
NOTE: This product is a version, a variant or a module of a main product. For further information about this product, visit the main product page.

The VS103 is designed to meet the exacting requirements of the central office environment.

The VS103 is also ergonomically and technically ideal for integrating into broadcast and production facilities. With an available powerful network management system and supporting an expanding number of functional cards, the platform is a future-proof solution for professional video processing and transport.

Key Features

  • Robust carrier-class design
  • 10 slots for any combination of cards from the Ventura series
  • Dual redundant load sharing power supplies, available in AC or DC, ensure maximum system up time
  • Hot swappable cards and power supplies
  • Field serviceable fans ensure system longevity
  • Front panel summary LEDs of power supply status, board monitors and fan monitors
  • Drop-down front door for card access
  • Passive chassis backplane
  • 19” rack mountable
  • Optional Advanced Element Management System that provides remote status, alarms and configurations via SNMP and Ethernet
  • NEBS Level 3 certified for reliable performance in harsh environments
