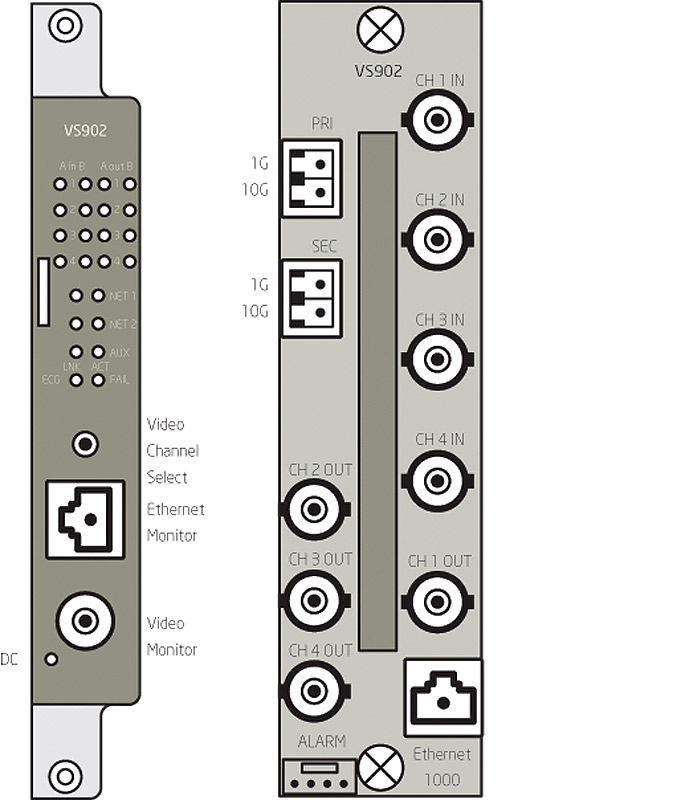

VS902 - Image 2
VS902 - Image 3

VS902 multi-format IP media transport

Categories: Product Family: Ventura Technology: SMPTE 2022-6, SMPTE 2022-7, JPEG 2000 Functionality: Encoding and decoding, IP adaptation Media Interface: ASI, Digital video (3G-SDI), Digital video (HD-SDI), Digital video (SD-SDI), IP/Ethernet access, MADI Transport interface: IP/Ethernet, Optical fiber, ASI, TS over IP Application Area: Contribution Networks

The VS902 is a modular multi-format contribution codec for IP/Ethernet networks.

The VS902 provides linear encapsulation of uncompressed SD-SDI, HD-SDI, and 3G-SDI signals and also encapsulates DVB-ASI or MADI signals for transport over IP. In addition, the VS902 provides the highest quality JPEG 2000 encoding for contribution video over bandwidth limited circuits. With the VS902, users can deploy multiple video circuits in point to point local loop applications or over long-distance IP/Ethernet networks. This flexible platform enables highly cost-efficient video transport over a common unified platform accessing virtually any environment—including long distance, metro area and campus networks.

Applications

  • Professional broadcast contribution
  • Studio-to-studio media exchange
  • Live sports and event contribution
  • Managed video services over IP

Key Features

  • Multi channel DVB-ASI, MADI and 3G/HD/SD-SDI video encapsulation using SMPTE 2022-2 and SMPTE 2022-6
  • Standards-based forward error correction supporting SMPTE 2022-1 and SMPTE 2022-5 for protection against packet losses created by occasional network errors
  • Seamless IP Protection Switching (SIPS) compliant to SMPTE 2022-7 providing perfect video over IP protection switching using dual network feeds
  • Low latency contribution JPEG 2000 compression and encapsulation with 1.5 frames of end to end delay
  • Dual networks interfaces supporting 1 GigE and 10 GigE using SFP+ technology

Document   vs902_ds_r1522

VS902 Multi-Format IP Media transport

This folder contains Release notes for features on the Ventura VS902:
  • VS902_ASI_Release_Notes
  • VS902_Fallback_Release_Notes
  • VS902_J2KC_Framestore_Release_Notes
  • VS902_J2KC_Release_Notes
  • VS902_J2KD_Framestore_Release_Notes
  • VS902_J2KD_Release_Notes
  • VS902_J2KD_TR01_Release_Notes
  • VS902_J2KD3G_Release_Notes
  • VS902_J2KE_Framestore_Release_Notes
  • VS902_J2KE_Release_Notes
  • VS902_J2KE_TR01_Release_Notes
  • VS902_J2KE3G_Release_Notes
  • VS902_LC_Release_Notes
  • VS902_MADI_Release_Notes
  • VS902_MADI_Out_SRC_Release_Notes

Document   VS902 Release notes R1845 ()

Document   vs902_22260-0902_rev._d
