Nevion Virtuoso’s JPEG XS UHD/HD Media Function offers multi-channel JPEG XS encoding or decoding with native ST2110 video or SDI baseband interfaces, with ST2110-22 compressed JPEG XS essence transport compatible with VSF TR-08.

JPEG XS (ISO/IEC 21122) is a modern light-weight image and video encoding standard that achieves pristine visually lossless video quality even for multiple concatenated compression cycles. The ulta low sub-millisecond latency of JPEG XS encoding is a key benefit, and enables end-to-end delays of less than one video frame period.  This makes JPEG XS extremely attractive for low latency real-time transport of HD and UHD/4K video over wide-area networks (WANs). It also makes it suitable for bandwidth-constrained campus and facility local area networks (LANs) when uncompressed transport is not a viable option.

The Virtuoso JPEG XS Media Functions runs on the Virtuoso HBR and HBR25 accelerators, supporting electrical and optical SDI interfaces via video SFPs, and ST2110 IP video/audio via dual 10GE or 25GE.

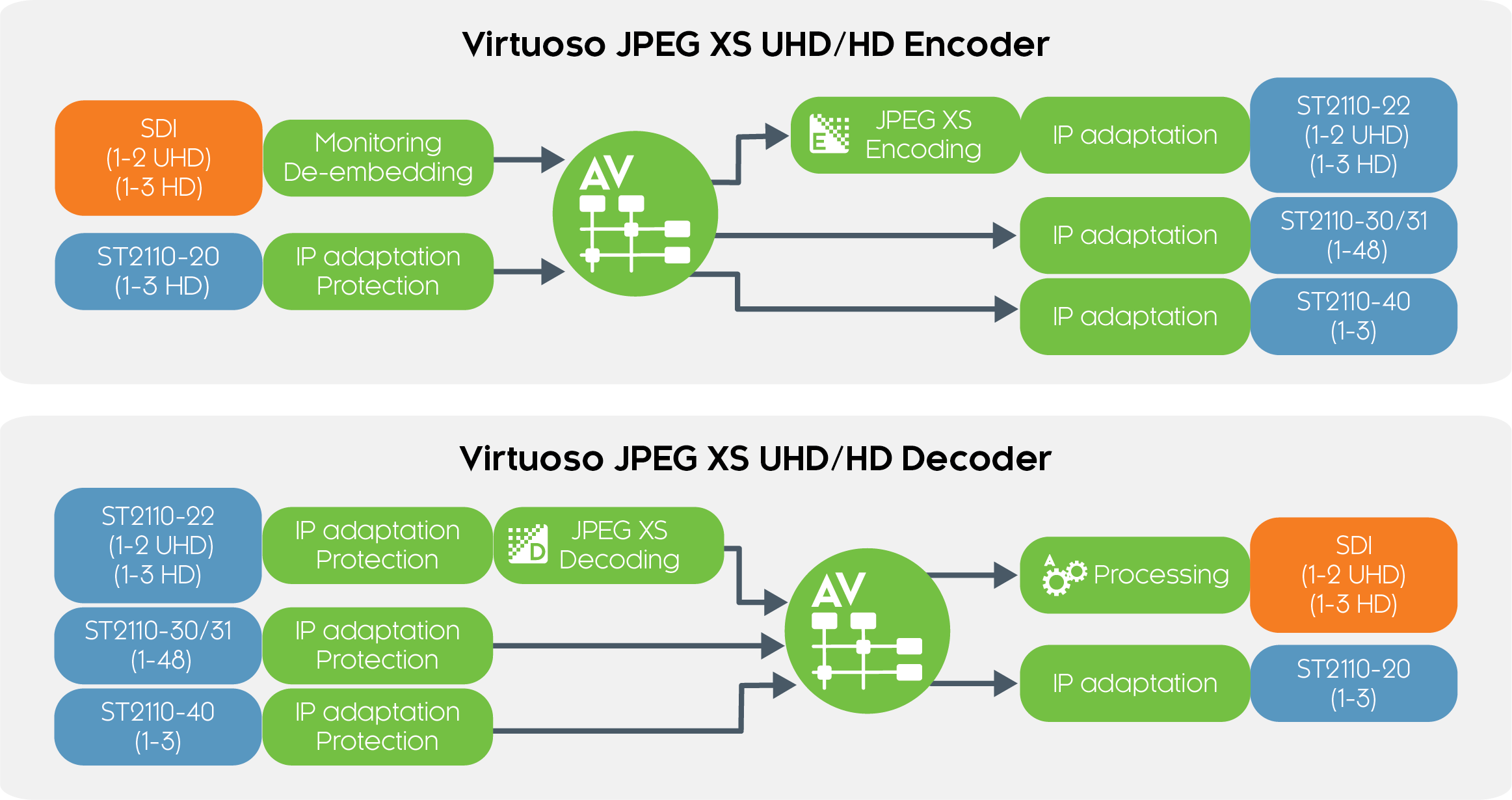

A single JPEG XS instance on the HBR accelerator card supports encoding or decoding of up to 3 HD or 2 UHD SDI signals, providing up to 24 HD channels or 16 UHD channel encoding/decoding in the 8 slot Virtuoso MI appliance.

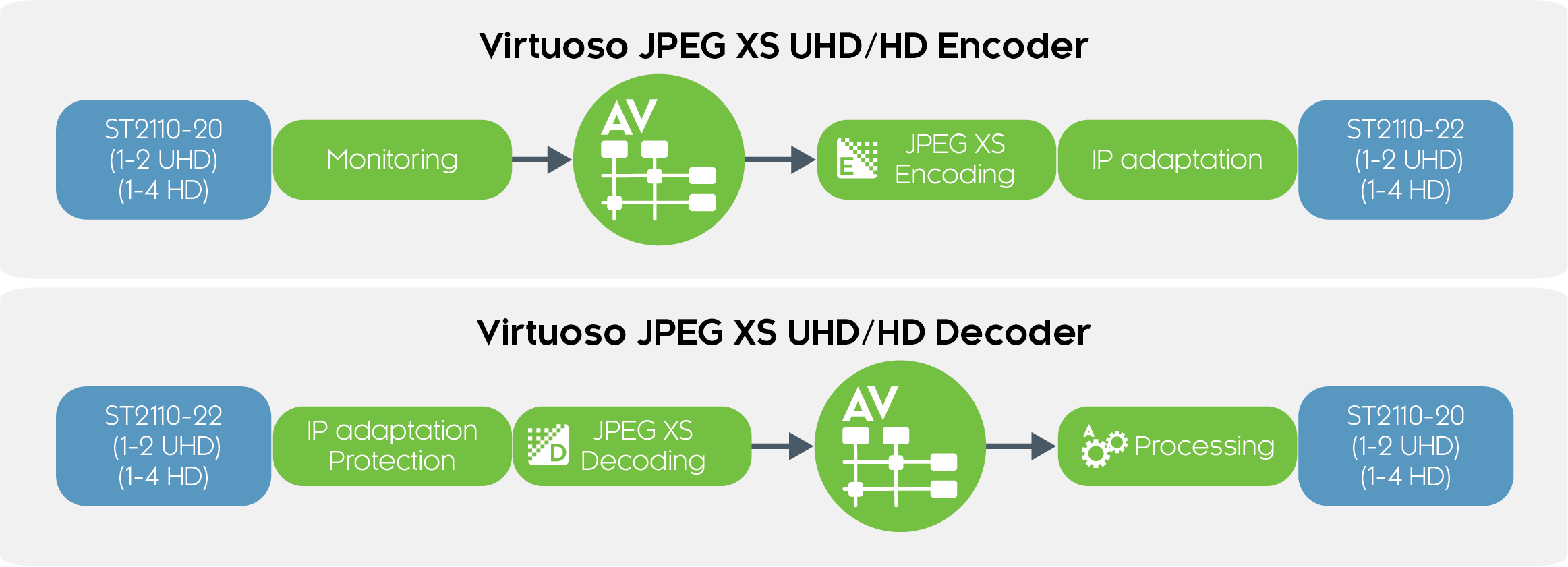

A single JPEG XS instance on the HBR25 accelerator card supports encoding or decoding of up to 4 HD or 2 UHD ST2110 signals, providing up to 32 HD channel or 16 UHD channel encoding/decoding in the 8 slot Virtuoso MI appliance.

For JPEG XS in Transport Stream over IP, read more here.

Nevion Virtuoso

Applications

  • IP in the facilities
  • IP production infrastructure
  • Remote and at-home production
  • In-house/campus media networks
  • Broadcast contribution networks

Key Features

  • JPEG XS compression for video
    • Multi-channel UHD/HD encoding/decoding
    • Visually lossless compression
    • Ultra low sub-frame end-to-end latency
  • Native IP and SDI connectivity
    • Standards-compliant JPEG XS in IP ST2110-22
    • Native ST2110 interfacing (-10/20/21/30/31/40)
    • HD/3G/12G-SDI optical and electrical via SFPs
  • Video/Audio processing
    • Built-in frame synchronizer with PTP support
    • Audio and ANC embedding/de-embedding
    • Automatic audio/ANC synchronization
    • Audio routing, shuffling, gain and delay
  • Stream protection
    • SMPTE 2022-7 for all RTP media input flows
  • Monitoring
    • Thumbnails of input and output video
