Nevion Products

Nevion Virtuoso is a revolutionary software-defined media platform, offering wide-ranging functionality for live production, contribution and professional media transport applications. Its versatility enables a faster time-to-production and greater cost-effectiveness.

Click here for a video introduction as well as why choose Virtuoso

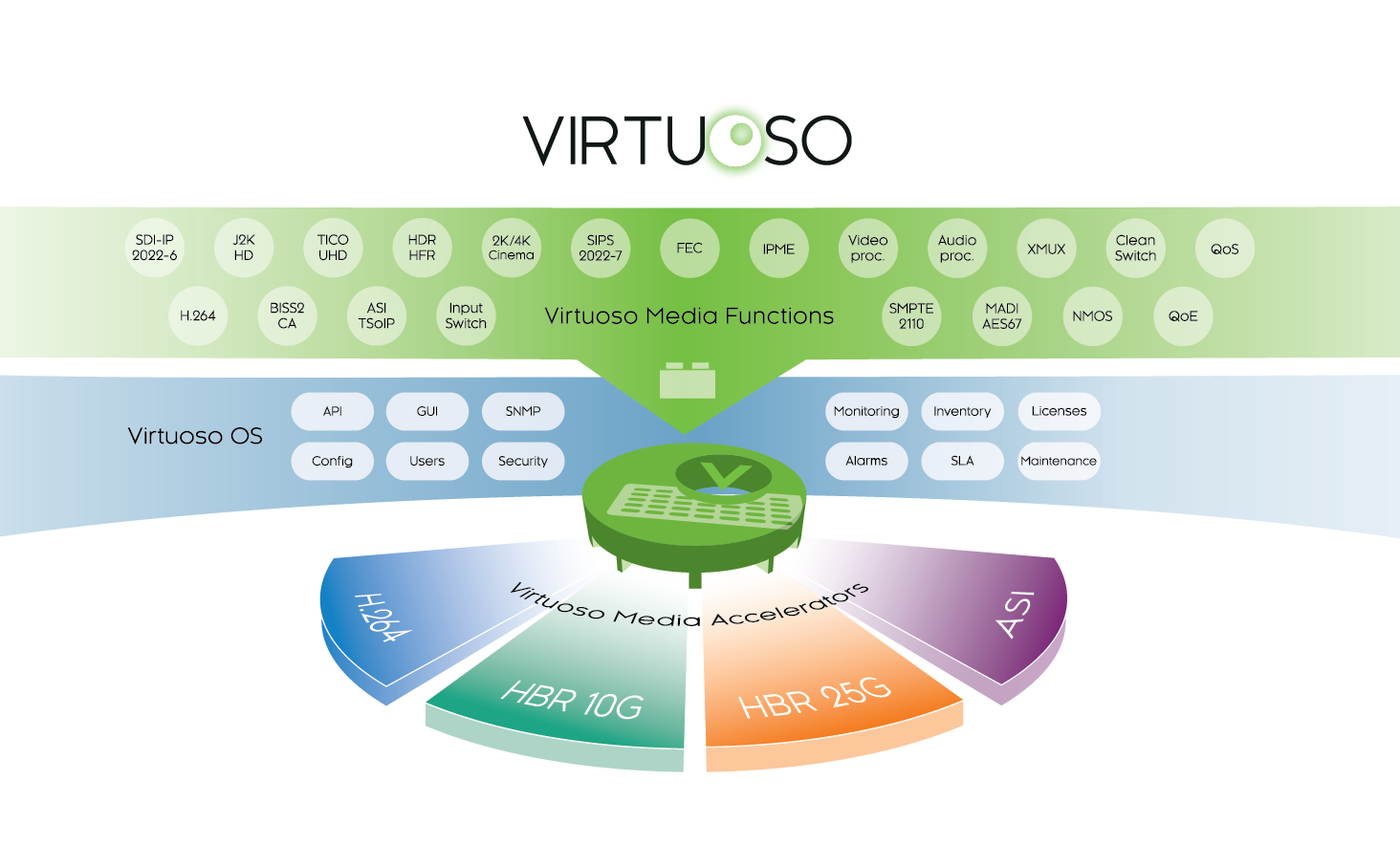

Virtuoso components

Virtuoso’s functionality is virtualized, and delivered by software modules, known as Media Functions – all designed to perform with ultra-low latency. These licensed-controlled functions can be installed, activated and changed on demand – meaning there is no need to switch equipment when a change of functionality is required. Most of the media functions run on generic Media accelerators, which are housed in a Media Server Appliance. Accelerators provide the required processing resources for media functions ranging from video encoding to advanced audio video processing.

Media Functions

Nevion Virtuoso can perform a large variety of software-based media functions, including but not limited to:

  • SDI, SMPTE 2022-6 and SMPTE 2110 processing and adaption
  • MADI, SMPTE 2110 / AES67 IP audio adaption, embedding/de-embedding, processing and mixing
  • Video encoding and decoding for JPEG 2000, TICO and H.264/AVC
  • Support for SD, HD, 3G and 12G/UHD broadcast formats, 2K and 4K film/cinema formats, slow-motion and stereoscopic 3D
  • Extensive input signal monitoring with option for alarm-based input switching
  • ASI and Transport Stream over IP adaptation, with built-in TS monitoring and redundancy switching functionality
  • Advanced transport protection, including FEC, SMPTE 2022-7 seamless switching and LDO (launch delay offset)

Media functions are listed on this page, under Related Products below.

Media Server Appliances

The Nevion Virtuoso platform has been designed to allow for the provision of Media Servers (appliances) with different characteristics, such as size, number of Media Accelerators that can be accommodated and level of modularity, in order to suit virtually any deployment scenario.

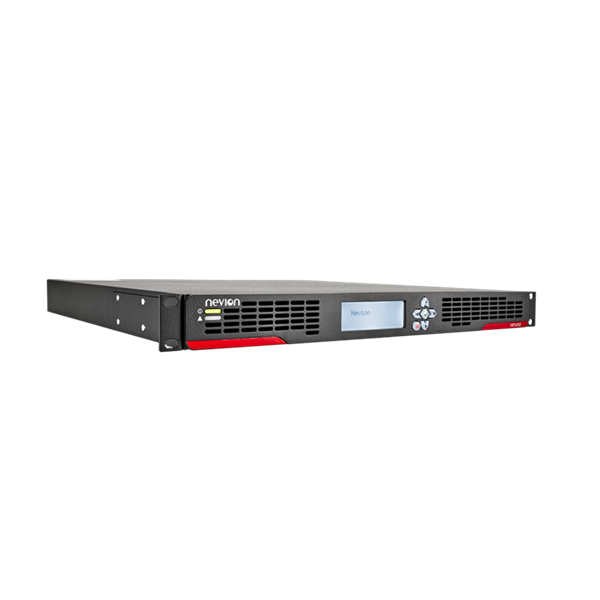

  • Nevion Virtuoso FA: a 1 RU flexible appliance with dual AC load-sharing power supplies. It includes a built-in 10GE uplink for MPEG-2 TS adaption, processing and monitoring, as well as element management functions. It can hold up to four Media Accelerators, and is cost effective and suitable for fixed and mobile flight case deployments.

Media Accelerators

Nevion Virtuoso Media Accelerators are designed to provide the optimum performance for Media Functions.

The following Media Accelerators are available in Virtuoso FA:

  • HBR Media Accelerator: generic processing card with flexible interfacing to IP/10GE, SDI/video and MADI audio.
  • ASI Adapter: designed for ASI Transport Stream interfacing (FA only)
  • H.264/AVC Accelerator: designed for the high quality H.264/AVC and MPEG-2 encoding/decoding (FA only)

Management and orchestration

The Nevion Virtuoso platform, together with Nevion’s VideoIPath orchestration and SDN management software, are designed to enable the full potential of IP-based media transport. VideoIPath controls the functionality on the platform including service scheduling, provisioning and monitoring.

Remote device configuration and monitoring is based on HTML5 web user interfaces, RESTful APIs or Nevion Viewer.

Find out more by clicking here.

Document   Nevion_Virtuoso_Platform_Datasheet_R2104

Document   Virtuoso FA User Manual

Document   TXP HTTP/XML protocol

Document   TXP configuration help
